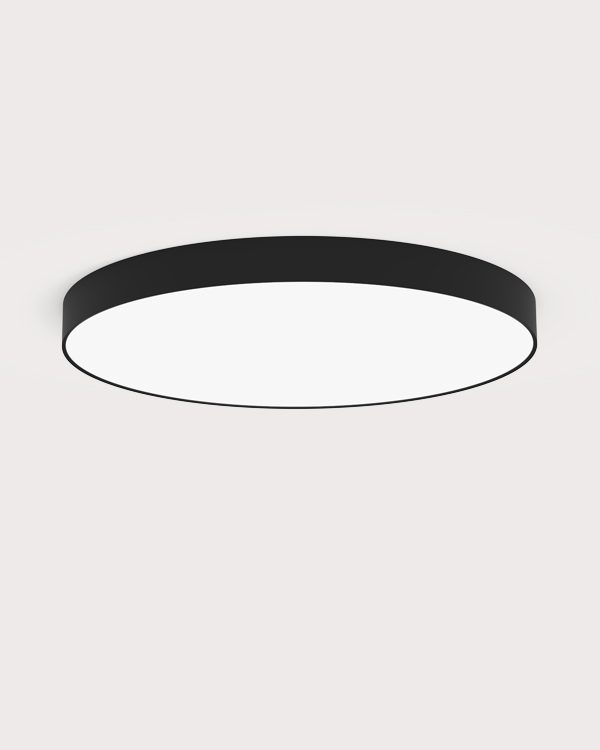

Helius Surface Circular LED Profile CRI>90

76 80 55

Request a Lighting Project

Description

A circle is the reflection of eternity, it has no beginning and it has no end. Brilumen proudly presents our new range of circular LED luminaires. With a 5 Year Warranty Helius is designed and inspired to deliver one complete ambient light with a seamless diffuser and profile. With an internal driver, different wattages, diameters and mounting types, these circular profiles can be easily applied in numerous locations, such as stores, cinemas, museums, galleries, hotels, restaurants, meeting rooms, offices, lounges, etc. The Olympia LED circular profile can also be configured with the options of ON-OFF, DALI and CASAMBI. Other dimmable options are as well available on request. Brilumen has also available the IES and LDT files for DIALux projects, providing technical assistance during lighting projects.

DOWNLOADS

Technical Details

MOUNTING TYPE		Suspension
LIGHT DISTRIBUTION		Direct
POWER SUPPLY		220-230V / 50-60 Hz
WARRANTY		5 Years
FINISHING		Textured Black, Textured Silver, Textured White
CONTROL		DALI / Switch Dim, ON/OFF

LED FEATURES
LUMINOUS EFFICIENCY		UP TO 194 lm/W
CRI		CRI>90
LIFESPAN		40.000 Hours Tp 55°
STEPS MACADAM		3 Steps MacAdam
LUMEN MAINTENANCE		L90/F10
PHOTOBIOLOGICAL RISK		RG0

SELECT YOUR ITEM CODES

Product code	LENGTH	POWER	FINISHING	COLOR TEMP.	CONTROL TYPE	LED LUMENS	LUMINAIRE LM


231DA.11P8.930.TB	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm DALI Push dim TB 3000K
	1100	102	Textured Black	3000K	DALI / Switch Dim	16776	14260
231DA.11O9.930.TB	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm DALI Push dim TB 3000K
	1100	102	Textured Black	3000K	DALI / Switch Dim	16776	14125
231NF.11P8.930.TB	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm ON/OFF TB 3000K
	1100	102	Textured Black	3000K	ON/OFF	16776	14260
231NF.11O9.930.TB	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm ON/OFF TB 3000K
	1100	102	Textured Black	3000K	ON/OFF	16776	14125
231DA.11P8.940.TB	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm DALI Push dim TB 4000K
	1100	102	Textured Black	4000K	DALI / Switch Dim	17640	14994
231DA.11O9.940.TB	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm DALI Push dim TB 4000K
	1100	102	Textured Black	4000K	DALI / Switch Dim	17640	14853
231NF.11P8.940.TB	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm ON/OFF TB 4000K
	1100	102	Textured Black	4000K	ON/OFF	17640	14994
231NF.11O9.940.TB	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm ON/OFF TB 4000K
	1100	102	Textured Black	4000K	ON/OFF	17640	14853
231DA.11P8.930.TS	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm DALI Push dim TS 3000K
	1100	102	Textured Silver	3000K	DALI / Switch Dim	16776	14260
231DA.11O9.930.TS	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm DALI Push dim TS 3000K
	1100	102	Textured Silver	3000K	DALI / Switch Dim	16776	14125
231NF.11P8.930.TS	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm ON/OFF TS 3000K
	1100	102	Textured Silver	3000K	ON/OFF	16776	14260
231NF.11O9.930.TS	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm ON/OFF TS 3000K
	1100	102	Textured Silver	3000K	ON/OFF	16776	14125
231DA.11P8.940.TS	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm DALI Push dim TS 4000K
	1100	102	Textured Silver	4000K	DALI / Switch Dim	17640	14994
231DA.11O9.940.TS	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm DALI Push dim TS 4000K
	1100	102	Textured Silver	4000K	DALI / Switch Dim	17640	14853
231NF.11P8.940.TS	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm ON/OFF TS 4000K
	1100	102	Textured Silver	4000K	ON/OFF	17640	14994
231NF.11O9.940.TS	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm ON/OFF TS 4000K
	1100	102	Textured Silver	4000K	ON/OFF	17640	14853
231DA.11P8.930.TW	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm DALI Push dim TW 3000K
	1100	102	Textured White	3000K	DALI / Switch Dim	16776	14260
231DA.11O9.930.TW	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm DALI Push dim TW 3000K
	1100	102	Textured White	3000K	DALI / Switch Dim	16776	14125
231NF.11P8.930.TW	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm ON/OFF TW 3000K
	1100	102	Textured White	3000K	ON/OFF	16776	14260
231NF.11O9.930.TW	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm ON/OFF TW 3000K
	1100	102	Textured White	3000K	ON/OFF	16776	14125
231DA.11P8.940.TW	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm DALI Push dim TW 4000K
	1100	102	Textured White	4000K	DALI / Switch Dim	17640	14994
231DA.11O9.940.TW	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm DALI Push dim TW 4000K
	1100	102	Textured White	4000K	DALI / Switch Dim	17640	14853
231NF.11P8.940.TW	Helius Surface 102W CRI+90 microprismatic 80º IP40 5Y 1100mm ON/OFF TW 4000K
	1100	102	Textured White	4000K	ON/OFF	17640	14994
231NF.11O9.940.TW	Helius Surface 102W CRI+90 Opal 90º IP40 5Y 1100mm ON/OFF TW 4000K
	1100	102	Textured White	4000K	ON/OFF	17640	14853
231DA.04P8.930.TB	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm DALI Push dim TB 3000K
	400	17	Textured Black	3000K	DALI / Switch Dim	2754	2366
231DA.04O9.930.TB	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm DALI Push dim TB 3000K
	400	17	Textured Black	3000K	DALI / Switch Dim	2754	2338
231NF.04P8.930.TB	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm ON/OFF TB 3000K
	400	17	Textured Black	3000K	ON/OFF	2754	2366
231NF.04O9.930.TB	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm ON/OFF TB 3000K
	400	17	Textured Black	3000K	ON/OFF	2754	2338
231DA.04P8.940.TB	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm DALI Push dim TB 4000K
	400	17	Textured Black	4000K	DALI / Switch Dim	2880	2474
231DA.04O9.940.TB	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm DALI Push dim TB 4000K
	400	17	Textured Black	4000K	DALI / Switch Dim	2880	2445
231NF.04P8.940.TB	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm ON/OFF TB 4000K
	400	17	Textured Black	4000K	ON/OFF	2880	2474
231NF.04O9.940.TB	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm ON/OFF TB 4000K
	400	17	Textured Black	4000K	ON/OFF	2880	2445
231DA.04P8.930.TS	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm DALI Push dim TS 3000K
	400	17	Textured Silver	3000K	DALI / Switch Dim	2754	2366
231DA.04O9.930.TS	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm DALI Push dim TS 3000K
	400	17	Textured Silver	3000K	DALI / Switch Dim	2754	2338
231NF.04P8.930.TS	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm ON/OFF TS 3000K
	400	17	Textured Silver	3000K	ON/OFF	2754	2366
231NF.04O9.930.TS	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm ON/OFF TS 3000K
	400	17	Textured Silver	3000K	ON/OFF	2754	2338
231DA.04P8.940.TS	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm DALI Push dim TS 4000K
	400	17	Textured Silver	4000K	DALI / Switch Dim	2880	2474
231DA.04O9.940.TS	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm DALI Push dim TS 4000K
	400	17	Textured Silver	4000K	DALI / Switch Dim	2880	2445
231NF.04P8.940.TS	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm ON/OFF TS 4000K
	400	17	Textured Silver	4000K	ON/OFF	2880	2474
231NF.04O9.940.TS	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm ON/OFF TS 4000K
	400	17	Textured Silver	4000K	ON/OFF	2880	2445
231DA.04P8.930.TW	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm DALI Push dim TW 3000K
	400	17	Textured White	3000K	DALI / Switch Dim	2754	2366
231DA.04O9.930.TW	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm DALI Push dim TW 3000K
	400	17	Textured White	3000K	DALI / Switch Dim	2754	2338
231NF.04P8.930.TW	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm ON/OFF TW 3000K
	400	17	Textured White	3000K	ON/OFF	2754	2366
231NF.04O9.930.TW	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm ON/OFF TW 3000K
	400	17	Textured White	3000K	ON/OFF	2754	2338
231DA.04P8.940.TW	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm DALI Push dim TW 4000K
	400	17	Textured White	4000K	DALI / Switch Dim	2880	2474
231DA.04O9.940.TW	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm DALI Push dim TW 4000K
	400	17	Textured White	4000K	DALI / Switch Dim	2880	2445
231NF.04P8.940.TW	Helius Surface 17W CRI+90 microprismatic 80º IP40 5Y 400mm ON/OFF TW 4000K
	400	17	Textured White	4000K	ON/OFF	2880	2474
231NF.04O9.940.TW	Helius Surface 17W CRI+90 Opal 90º IP40 5Y 400mm ON/OFF TW 4000K
	400	17	Textured White	4000K	ON/OFF	2880	2445
231DA.06P8.930.TB	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm DALI Push dim TB 3000K
	600	29	Textured Black	3000K	DALI / Switch Dim	4608	3954
231DA.06O9.930.TB	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm DALI Push dim TB 3000K
	600	29	Textured Black	3000K	DALI / Switch Dim	4608	3926
231NF.06P8.930.TB	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm ON/OFF TB 3000K
	600	29	Textured Black	3000K	ON/OFF	4608	3954
231NF.06O9.930.TB	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm ON/OFF TB 3000K
	600	29	Textured Black	3000K	ON/OFF	4608	3926
231DA.06P8.940.TB	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm DALI Push dim TB 4000K
	600	29	Textured Black	4000K	DALI / Switch Dim	4860	4170
231DA.06O9.940.TB	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm DALI Push dim TB 4000K
	600	29	Textured Black	4000K	DALI / Switch Dim	4860	4141
231NF.06P8.940.TB	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm ON/OFF TB 4000K
	600	29	Textured Black	4000K	ON/OFF	4860	4170
231NF.06O9.940.TB	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm ON/OFF TB 4000K
	600	29	Textured Black	4000K	ON/OFF	4860	4141
231DA.06P8.930.TS	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm DALI Push dim TS 3000K
	600	29	Textured Silver	3000K	DALI / Switch Dim	4608	3954
231DA.06O9.930.TS	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm DALI Push dim TS 3000K
	600	29	Textured Silver	3000K	DALI / Switch Dim	4608	3926
231NF.06P8.930.TS	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm ON/OFF TS 3000K
	600	29	Textured Silver	3000K	ON/OFF	4608	3954
231NF.06O9.930.TS	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm ON/OFF TS 3000K
	600	29	Textured Silver	3000K	ON/OFF	4608	3926
231DA.06P8.940.TS	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm DALI Push dim TS 4000K
	600	29	Textured Silver	4000K	DALI / Switch Dim	4860	4170
231DA.06O9.940.TS	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm DALI Push dim TS 4000K
	600	29	Textured Silver	4000K	DALI / Switch Dim	4860	4141
231NF.06P8.940.TS	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm ON/OFF TS 4000K
	600	29	Textured Silver	4000K	ON/OFF	4860	4170
231NF.06O9.940.TS	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm ON/OFF TS 4000K
	600	29	Textured Silver	4000K	ON/OFF	4860	4141
231DA.06P8.930.TW	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm DALI Push dim TW 3000K
	600	29	Textured White	3000K	DALI / Switch Dim	4608	3954
231DA.06O9.930.TW	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm DALI Push dim TW 3000K
	600	29	Textured White	3000K	DALI / Switch Dim	4608	3926
231NF.06P8.930.TW	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm ON/OFF TW 3000K
	600	29	Textured White	3000K	ON/OFF	4608	3954
231NF.06O9.930.TW	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm ON/OFF TW 3000K
	600	29	Textured White	3000K	ON/OFF	4608	3926
231DA.06P8.940.TW	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm DALI Push dim TW 4000K
	600	29	Textured White	4000K	DALI / Switch Dim	4860	4170
231DA.06O9.940.TW	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm DALI Push dim TW 4000K
	600	29	Textured White	4000K	DALI / Switch Dim	4860	4141
231NF.06P8.940.TW	Helius Surface 28W CRI+90 microprismatic 80º IP40 5Y 600mm ON/OFF TW 4000K
	600	29	Textured White	4000K	ON/OFF	4860	4170
231NF.06O9.940.TW	Helius Surface 28W CRI+90 Opal 90º IP40 5Y 600mm ON/OFF TW 4000K
	600	29	Textured White	4000K	ON/OFF	4860	4141
231DA.09P8.930.TB	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm DALI Push dim TB 3000K
	900	57	Textured Black	3000K	DALI / Switch Dim	9288	7923
231DA.09O9.930.TB	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm DALI Push dim TB 3000K
	900	57	Textured Black	3000K	DALI / Switch Dim	9288	7793
231NF.09P8.930.TB	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm ON/OFF TB 3000K
	900	57	Textured Black	3000K	ON/OFF	9288	7923
231NF.09O9.930.TB	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm ON/OFF TB 3000K
	900	57	Textured Black	3000K	ON/OFF	9288	7793
231DA.09P8.940.TB	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm DALI Push dim TB 4000K
	900	57	Textured Black	4000K	DALI / Switch Dim	9792	8353
231DA.09O9.940.TB	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm DALI Push dim TB 4000K
	900	57	Textured Black	4000K	DALI / Switch Dim	9792	8215
231NF.09P8.940.TB	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm ON/OFF TB 4000K
	900	57	Textured Black	4000K	ON/OFF	9792	8353
231NF.09O9.940.TB	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm ON/OFF TB 4000K
	900	57	Textured Black	4000K	ON/OFF	9792	8215
231DA.09P8.930.TS	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm DALI Push dim TS 3000K
	900	57	Textured Silver	3000K	DALI / Switch Dim	9288	7923
231DA.09O9.930.TS	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm DALI Push dim TS 3000K
	900	57	Textured Silver	3000K	DALI / Switch Dim	9288	7793
231NF.09P8.930.TS	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm ON/OFF TS 3000K
	900	57	Textured Silver	3000K	ON/OFF	9288	7923
231NF.09O9.930.TS	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm ON/OFF TS 3000K
	900	57	Textured Silver	3000K	ON/OFF	9288	7793
231DA.09P8.940.TS	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm DALI Push dim TS 4000K
	900	57	Textured Silver	4000K	DALI / Switch Dim	9792	8353
231DA.09O9.940.TS	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm DALI Push dim TS 4000K
	900	57	Textured Silver	4000K	DALI / Switch Dim	9792	8215
231NF.09P8.940.TS	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm ON/OFF TS 4000K
	900	57	Textured Silver	4000K	ON/OFF	9792	8353
231NF.09O9.940.TS	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm ON/OFF TS 4000K
	900	57	Textured Silver	4000K	ON/OFF	9792	8215
231DA.09P8.930.TW	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm DALI Push dim TW 3000K
	900	57	Textured White	3000K	DALI / Switch Dim	9288	7923
231DA.09O9.930.TW	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm DALI Push dim TW 3000K
	900	57	Textured White	3000K	DALI / Switch Dim	9288	7793
231NF.09P8.930.TW	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm ON/OFF TW 3000K
	900	57	Textured White	3000K	ON/OFF	9288	7923
231NF.09O9.930.TW	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm ON/OFF TW 3000K
	900	57	Textured White	3000K	ON/OFF	9288	7793
231DA.09P8.940.TW	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm DALI Push dim TW 4000K
	900	57	Textured White	4000K	DALI / Switch Dim	9792	8353
231DA.09O9.940.TW	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm DALI Push dim TW 4000K
	900	57	Textured White	4000K	DALI / Switch Dim	9792	8215
231NF.09P8.940.TW	Helius Surface 56W CRI+90 microprismatic 80º IP40 5Y 900mm ON/OFF TW 4000K
	900	57	Textured White	4000K	ON/OFF	9792	8353
231NF.09O9.940.TW	Helius Surface 56W CRI+90 Opal 90º IP40 5Y 900mm ON/OFF TW 4000K
	900	57	Textured White	4000K	ON/OFF	9792	8215
SeeMore...

ACCESSORIES

CASAMBI - DALI Interface	Product code
CASAMBI - DALI Interface CASAMBI	8030-2590

Related Projects

HELIUS
