LIV UP/DOWN - Adjustable

Description

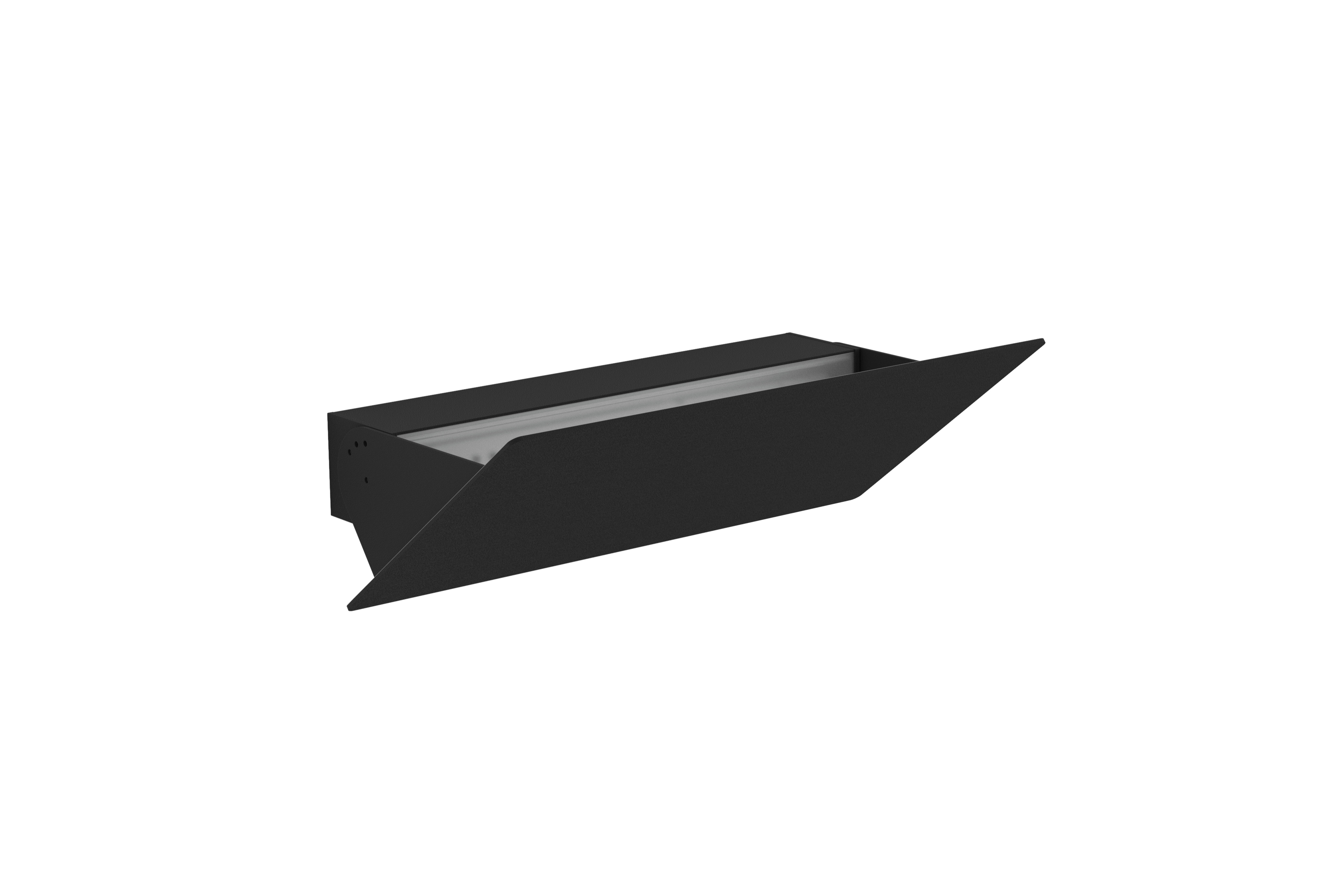

LIV is Brilumen’s new wall luminaire

With a modern and architectural design, LIV is the perfect choice for projects that value clean lines and discreet sophistication.

Available in two versions:

LIV UP – emits light upwards only, creating a soft and elegant ambiance.

LIV UP/DOWN – with adjustable light in three different angles, it illuminates both upwards and downwards, offering greater versatility and control over the room’s atmosphere.

LIV is available in three lengths: 320 mm, 600 mm, and 880 mm, adapting perfectly to various spatial and aesthetic needs.

More than just a luminaire, LIV is a design element that transforms spaces with style.

Technical Details

MOUNTING TYPE		Surface
POWER SUPPLY		220-230V / 50-60 Hz
WARRANTY		5 Years
FINISHING		Textured Black, Textured Silver, Textured White
CONTROL		DALI / Switch Dim, ON/OFF

LED FEATURES
LUMINOUS EFFICIENCY		UP TO 196 lm/W
CRI		CRI>90
LIFESPAN		50.000 Hours
STEPS MACADAM		3 Steps MacAdam
LUMEN MAINTENANCE		L90/B50
PHOTOBIOLOGICAL RISK		RG1

Product code	Description
130DA.03.930.TB	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 DALI Push dim 5Y 320mm TB 3000K	320	6.8	Textured Black	3000K	DALI / Switch Dim	CRI>90	878
130NF.03.930.TB	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 ON/OFF 5Y 320mm TB 3000K	320	6.8	Textured Black	3000K	ON/OFF	CRI>90	878
130DA.03.940.TB	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 DALI Push dim 5Y 320mm TB 4000K	320	6.8	Textured Black	4000K	DALI / Switch Dim	CRI>90	930
130NF.03.940.TB	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 ON/OFF 5Y 320mm TB 4000K	320	6.8	Textured Black	4000K	ON/OFF	CRI>90	930
130DA.03.930.TS	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 DALI Push dim 5Y 320mm TS 3000K	320	6.8	Textured Silver	3000K	DALI / Switch Dim	CRI>90	878
130NF.03.930.TS	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 ON/OFF 5Y 320mm TS 3000K	320	6.8	Textured Silver	3000K	ON/OFF	CRI>90	878
130DA.03.940.TS	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 DALI Push dim 5Y 320mm TS 4000K	320	6.8	Textured Silver	4000K	DALI / Switch Dim	CRI>90	930
130NF.03.940.TS	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 ON/OFF 5Y 320mm TS 4000K	320	6.8	Textured Silver	4000K	ON/OFF	CRI>90	930
130DA.03.930.TW	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 DALI Push dim 5Y 320mm TW 3000K	320	6.8	Textured White	3000K	DALI / Switch Dim	CRI>90	878
130NF.03.930.TW	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 ON/OFF 5Y 320mm TW 3000K	320	6.8	Textured White	3000K	ON/OFF	CRI>90	878
130DA.03.940.TW	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 DALI Push dim 5Y 320mm TW 4000K	320	6.8	Textured White	4000K	DALI / Switch Dim	CRI>90	930
130NF.03.940.TW	LIV UP/DOWN - Adjustable 6,8W CRI>90 IP40 ON/OFF 5Y 320mm TW 4000K	320	6.8	Textured White	4000K	ON/OFF	CRI>90	930
130DA.06.930.TB	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 DALI Push dim 5Y 600mm TB 3000K	600	13.6	Textured Black	3000K	DALI / Switch Dim	CRI>90	1756
130NF.06.930.TB	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 ON/OFF 5Y 600mm TB 3000K	600	13.6	Textured Black	3000K	ON/OFF	CRI>90	1756
130DA.06.940.TB	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 DALI Push dim 5Y 600mm TB 4000K	600	13.6	Textured Black	4000K	DALI / Switch Dim	CRI>90	1860
130NF.06.940.TB	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 ON/OFF 5Y 600mm TB 4000K	600	13.6	Textured Black	4000K	ON/OFF	CRI>90	1860
130DA.06.930.TS	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 DALI Push dim 5Y 600mm TS 3000K	600	13.6	Textured Silver	3000K	DALI / Switch Dim	CRI>90	1756
130NF.06.930.TS	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 ON/OFF 5Y 600mm TS 3000K	600	13.6	Textured Silver	3000K	ON/OFF	CRI>90	1756
130DA.06.940.TS	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 DALI Push dim 5Y 600mm TS 4000K	600	13.6	Textured Silver	4000K	DALI / Switch Dim	CRI>90	1860
130NF.06.940.TS	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 ON/OFF 5Y 600mm TS 4000K	600	13.6	Textured Silver	4000K	ON/OFF	CRI>90	1860
130DA.06.930.TW	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 DALI Push dim 5Y 600mm TW 3000K	600	13.6	Textured White	3000K	DALI / Switch Dim	CRI>90	1756
130NF.06.930.TW	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 ON/OFF 5Y 600mm TW 3000K	600	13.6	Textured White	3000K	ON/OFF	CRI>90	1756
130DA.06.940.TW	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 DALI Push dim 5Y 600mm TW 4000K	600	13.6	Textured White	4000K	DALI / Switch Dim	CRI>90	1860
130NF.06.940.TW	LIV UP/DOWN - Adjustable 13,6W CRI>90 IP40 ON/OFF 5Y 600mm TW 4000K	600	13.6	Textured White	4000K	ON/OFF	CRI>90	1860
130DA.08.930.TB	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 DALI Push dim 5Y 880mm TB 3000K	880	20.3	Textured Black	3000K	DALI / Switch Dim	CRI>90	2634
130NF.08.930.TB	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 ON/OFF 5Y 880mm TB 3000K	880	20.3	Textured Black	3000K	ON/OFF	CRI>90	2634
130DA.08.940.TB	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 DALI Push dim 5Y 880mm TB 4000K	880	20.3	Textured Black	4000K	DALI / Switch Dim	CRI>90	2791
130NF.08.940.TB	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 ON/OFF 5Y 880mm TB 4000K	880	20.3	Textured Black	4000K	ON/OFF	CRI>90	2791
130DA.08.930.TS	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 DALI Push dim 5Y 880mm TS 3000K	880	20.3	Textured Silver	3000K	DALI / Switch Dim	CRI>90	2634
130NF.08.930.TS	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 ON/OFF 5Y 880mm TS 3000K	880	20.3	Textured Silver	3000K	ON/OFF	CRI>90	2634
130DA.08.940.TS	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 DALI Push dim 5Y 880mm TS 4000K	880	20.3	Textured Silver	4000K	DALI / Switch Dim	CRI>90	2791
130NF.08.940.TS	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 ON/OFF 5Y 880mm TS 4000K	880	20.3	Textured Silver	4000K	ON/OFF	CRI>90	2791
130DA.08.930.TW	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 DALI Push dim 5Y 880mm TW 3000K	880	20.3	Textured White	3000K	DALI / Switch Dim	CRI>90	2634
130NF.08.930.TW	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 ON/OFF 5Y 880mm TW 3000K	880	20.3	Textured White	3000K	ON/OFF	CRI>90	2634
130DA.08.940.TW	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 DALI Push dim 5Y 880mm TW 4000K	880	20.3	Textured White	4000K	DALI / Switch Dim	CRI>90	2791
130NF.08.940.TW	LIV UP/DOWN - Adjustable 20,3W CRI>90 IP40 ON/OFF 5Y 880mm TW 4000K	880	20.3	Textured White	4000K	ON/OFF	CRI>90	2791
See More...
