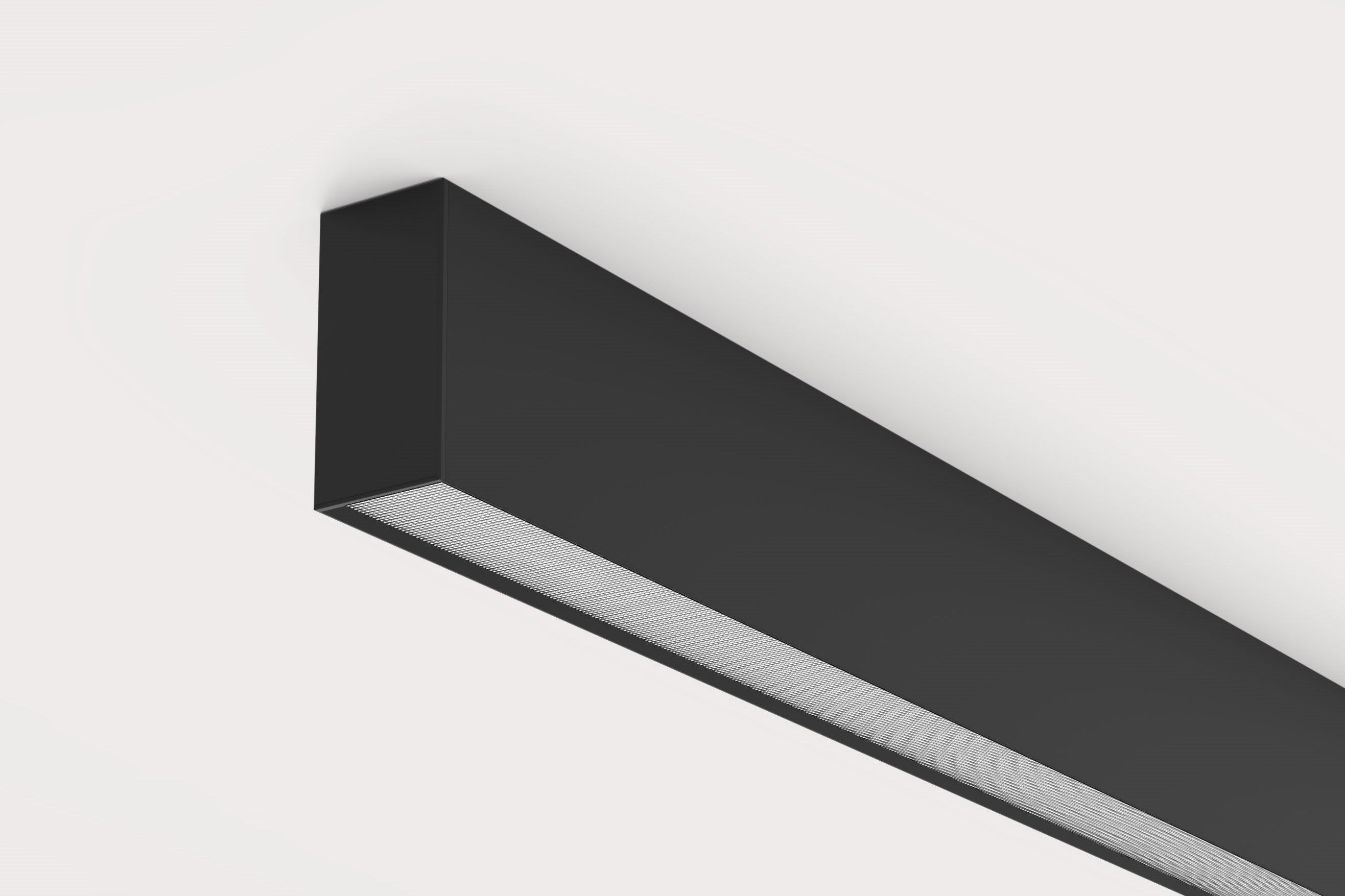

Oris NEO Linear System Surface Microprismatic CRI>90
Description
The ORIS NEO LINEAR SYSTEMS configuration is designed for creating continuous lines of light, with or without indirect lighting, ensuring visual uniformity and consistent performance in lengths up to 50 meters. Invisible joints and a fast electrical and mechanical connection system guarantee easy installation and a professional finish. For solutions with different types of optics or segmented lighting, please refer to the ORIS NEO MODULAR configuration.
Technical Details
MOUNTING TYPE
SALIENTE
LIGHT DISTRIBUTION
Direct
POWER SUPPLY
220-230V / 50-60 Hz
WARRANTY
5 Years
FINISHING
Anodized aluminium, Textured Black, Textured White
CONTROL
DALI / Switch Dim, ON/OFF, Tunable White
LED FEATURES
LUMINOUS EFFICIENCY
UP TO 196 lm/W
CRI
CRI>90, Tunable White CRI>90
LIFESPAN
50.000 Hours, 72000h Tp55
STEPS MACADAM
3 Steps MacAdam
LUMEN MAINTENANCE
L90/B50
PHOTOBIOLOGICAL RISK
RG1
Product code
Description
362DA.11P8.930.AL
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm AL 3000K
1130
22.4
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
3405
362NF.11P8.930.AL
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm AL 3000K
1130
22.4
Anodized aluminium
3000K
ON/OFF
CRI>90
3405
362DA.11P8.940.AL
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm AL 4000K
1130
22.4
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
3602
362NF.11P8.940.AL
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm AL 4000K
1130
22.4
Anodized aluminium
4000K
ON/OFF
CRI>90
3602
362DA.11P8.930.TB
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TB 3000K
1130
22.4
Textured Black
3000K
DALI / Switch Dim
CRI>90
3405
362NF.11P8.930.TB
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TB 3000K
1130
22.4
Textured Black
3000K
ON/OFF
CRI>90
3405
362DA.11P8.940.TB
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TB 4000K
1130
22.4
Textured Black
4000K
DALI / Switch Dim
CRI>90
3602
362NF.11P8.940.TB
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TB 4000K
1130
22.4
Textured Black
4000K
ON/OFF
CRI>90
3602
362DA.11P8.930.TW
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TW 3000K
1130
22.4
Textured White
3000K
DALI / Switch Dim
CRI>90
3405
362NF.11P8.930.TW
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TW 3000K
1130
22.4
Textured White
3000K
ON/OFF
CRI>90
3405
362DA.11P8.940.TW
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TW 4000K
1130
22.4
Textured White
4000K
DALI / Switch Dim
CRI>90
3602
362NF.11P8.940.TW
ORIS NEO Linear System microprismatic surface 22,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TW 4000K
1130
22.4
Textured White
4000K
ON/OFF
CRI>90
3602
362TU.11P8.92765.AL
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 Tunable White 5Y 1130mm AL 2700K -> 6500K
1130
33.6
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
3387
362TU.11P8.92765.TB
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 Tunable White 5Y 1130mm TB 2700K -> 6500K
1130
33.6
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
3387
362TU.11P8.92765.TW
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 Tunable White 5Y 1130mm TW 2700K -> 6500K
1130
33.6
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
3387
362DA.14P8.930.AL
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 DALI Push dim 5Y 1410mm AL 3000K
1410
28
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
4256
362NF.14P8.930.AL
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 ON/OFF 5Y 1410mm AL 3000K
1410
28
Anodized aluminium
3000K
ON/OFF
CRI>90
4256
362DA.14P8.940.AL
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 DALI Push dim 5Y 1410mm AL 4000K
1410
28
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
4502
362NF.14P8.940.AL
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 ON/OFF 5Y 1410mm AL 4000K
1410
28
Anodized aluminium
4000K
ON/OFF
CRI>90
4502
362DA.14P8.930.TB
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 DALI Push dim 5Y 1410mm TB 3000K
1410
28
Textured Black
3000K
DALI / Switch Dim
CRI>90
4256
362NF.14P8.930.TB
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 ON/OFF 5Y 1410mm TB 3000K
1410
28
Textured Black
3000K
ON/OFF
CRI>90
4256
362DA.14P8.940.TB
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 DALI Push dim 5Y 1410mm TB 4000K
1410
28
Textured Black
4000K
DALI / Switch Dim
CRI>90
4502
362NF.14P8.940.TB
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 ON/OFF 5Y 1410mm TB 4000K
1410
28
Textured Black
4000K
ON/OFF
CRI>90
4502
362DA.14P8.930.TW
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 DALI Push dim 5Y 1410mm TW 3000K
1410
28
Textured White
3000K
DALI / Switch Dim
CRI>90
4256
362NF.14P8.930.TW
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 ON/OFF 5Y 1410mm TW 3000K
1410
28
Textured White
3000K
ON/OFF
CRI>90
4256
362DA.14P8.940.TW
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 DALI Push dim 5Y 1410mm TW 4000K
1410
28
Textured White
4000K
DALI / Switch Dim
CRI>90
4502
362NF.14P8.940.TW
ORIS NEO Linear System microprismatic surface 28W CRI>90 80º IP40 ON/OFF 5Y 1410mm TW 4000K
1410
28
Textured White
4000K
ON/OFF
CRI>90
4502
362TU.14P8.92765.AL
ORIS NEO Linear System microprismatic surface 42W CRI>90 80º IP40 Tunable White 5Y 1410mm AL 2700K -> 6500K
1410
42
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
4234
362TU.14P8.92765.TB
ORIS NEO Linear System microprismatic surface 42W CRI>90 80º IP40 Tunable White 5Y 1410mm TB 2700K -> 6500K
1410
42
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
4234
362TU.14P8.92765.TW
ORIS NEO Linear System microprismatic surface 42W CRI>90 80º IP40 Tunable White 5Y 1410mm TW 2700K -> 6500K
1410
42
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
4234
362DA.16P8.930.AL
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 DALI Push dim 5Y 1690mm AL 3000K
1690
33.6
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
5107
362NF.16P8.930.AL
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 ON/OFF 5Y 1690mm AL 3000K
1690
33.6
Anodized aluminium
3000K
ON/OFF
CRI>90
5107
362DA.16P8.940.AL
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 DALI Push dim 5Y 1690mm AL 4000K
1690
33.6
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
5403
362NF.16P8.940.AL
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 ON/OFF 5Y 1690mm AL 4000K
1690
33.6
Anodized aluminium
4000K
ON/OFF
CRI>90
5403
362DA.16P8.930.TB
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 DALI Push dim 5Y 1690mm TB 3000K
1690
33.6
Textured Black
3000K
DALI / Switch Dim
CRI>90
5107
362NF.16P8.930.TB
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 ON/OFF 5Y 1690mm TB 3000K
1690
33.6
Textured Black
3000K
ON/OFF
CRI>90
5107
362DA.16P8.940.TB
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 DALI Push dim 5Y 1690mm TB 4000K
1690
33.6
Textured Black
4000K
DALI / Switch Dim
CRI>90
5403
362NF.16P8.940.TB
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 ON/OFF 5Y 1690mm TB 4000K
1690
33.6
Textured Black
4000K
ON/OFF
CRI>90
5403
362DA.16P8.930.TW
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 DALI Push dim 5Y 1690mm TW 3000K
1690
33.6
Textured White
3000K
DALI / Switch Dim
CRI>90
5107
362NF.16P8.930.TW
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 ON/OFF 5Y 1690mm TW 3000K
1690
33.6
Textured White
3000K
ON/OFF
CRI>90
5107
362DA.16P8.940.TW
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 DALI Push dim 5Y 1690mm TW 4000K
1690
33.6
Textured White
4000K
DALI / Switch Dim
CRI>90
5403
362NF.16P8.940.TW
ORIS NEO Linear System microprismatic surface 33,6W CRI>90 80º IP40 ON/OFF 5Y 1690mm TW 4000K
1690
33.6
Textured White
4000K
ON/OFF
CRI>90
5403
362TU.16P8.92765.AL
ORIS NEO Linear System microprismatic surface 50,4W CRI>90 80º IP40 Tunable White 5Y 1690mm AL 2700K -> 6500K
1690
50.4
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
5080
362TU.16P8.92765.TB
ORIS NEO Linear System microprismatic surface 50,4W CRI>90 80º IP40 Tunable White 5Y 1690mm TB 2700K -> 6500K
1690
50.4
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
5080
362TU.16P8.92765.TW
ORIS NEO Linear System microprismatic surface 50,4W CRI>90 80º IP40 Tunable White 5Y 1690mm TW 2700K -> 6500K
1690
50.4
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
5080
362DA.19P8.930.AL
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 DALI Push dim 5Y 1970mm AL 3000K
1970
39.2
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
5958
362NF.19P8.930.AL
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 ON/OFF 5Y 1970mm AL 3000K
1970
39.2
Anodized aluminium
3000K
ON/OFF
CRI>90
5958
362DA.19P8.940.AL
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 DALI Push dim 5Y 1970mm AL 4000K
1970
39.2
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
6303
362NF.19P8.940.AL
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 ON/OFF 5Y 1970mm AL 4000K
1970
39.2
Anodized aluminium
4000K
ON/OFF
CRI>90
6303
362DA.19P8.930.TB
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 DALI Push dim 5Y 1970mm TB 3000K
1970
39.2
Textured Black
3000K
DALI / Switch Dim
CRI>90
5958
362NF.19P8.930.TB
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 ON/OFF 5Y 1970mm TB 3000K
1970
39.2
Textured Black
3000K
ON/OFF
CRI>90
5958
362DA.19P8.940.TB
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 DALI Push dim 5Y 1970mm TB 4000K
1970
39.2
Textured Black
4000K
DALI / Switch Dim
CRI>90
6303
362NF.19P8.940.TB
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 ON/OFF 5Y 1970mm TB 4000K
1970
39.2
Textured Black
4000K
ON/OFF
CRI>90
6303
362DA.19P8.930.TW
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 DALI Push dim 5Y 1970mm TW 3000K
1970
39.2
Textured White
3000K
DALI / Switch Dim
CRI>90
5958
362NF.19P8.930.TW
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 ON/OFF 5Y 1970mm TW 3000K
1970
39.2
Textured White
3000K
ON/OFF
CRI>90
5958
362DA.19P8.940.TW
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 DALI Push dim 5Y 1970mm TW 4000K
1970
39.2
Textured White
4000K
DALI / Switch Dim
CRI>90
6303
362NF.19P8.940.TW
ORIS NEO Linear System microprismatic surface 39,2W CRI>90 80º IP40 ON/OFF 5Y 1970mm TW 4000K
1970
39.2
Textured White
4000K
ON/OFF
CRI>90
6303
362TU.19P8.92765.AL
ORIS NEO Linear System microprismatic surface 58,8W CRI>90 80º IP40 Tunable White 5Y 1970mm AL 2700K -> 6500K
1970
58.8
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
5927
362TU.19P8.92765.TB
ORIS NEO Linear System microprismatic surface 58,8W CRI>90 80º IP40 Tunable White 5Y 1970mm TB 2700K -> 6500K
1970
58.8
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
5927
362TU.19P8.92765.TW
ORIS NEO Linear System microprismatic surface 58,8W CRI>90 80º IP40 Tunable White 5Y 1970mm TW 2700K -> 6500K
1970
58.8
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
5927
362DA.22P8.930.AL
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 DALI Push dim 5Y 2250mm AL 3000K
2250
44.8
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
6810
362NF.22P8.930.AL
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 ON/OFF 5Y 2250mm AL 3000K
2250
44.8
Anodized aluminium
3000K
ON/OFF
CRI>90
6810
362DA.22P8.940.AL
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 DALI Push dim 5Y 2250mm AL 4000K
2250
44.8
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
7204
362NF.22P8.940.AL
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 ON/OFF 5Y 2250mm AL 4000K
2250
44.8
Anodized aluminium
4000K
ON/OFF
CRI>90
7204
362DA.22P8.930.TB
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 DALI Push dim 5Y 2250mm TB 3000K
2250
44.8
Textured Black
3000K
DALI / Switch Dim
CRI>90
6810
362NF.22P8.930.TB
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 ON/OFF 5Y 2250mm TB 3000K
2250
44.8
Textured Black
3000K
ON/OFF
CRI>90
6810
362DA.22P8.940.TB
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 DALI Push dim 5Y 2250mm TB 4000K
2250
44.8
Textured Black
4000K
DALI / Switch Dim
CRI>90
7204
362NF.22P8.940.TB
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 ON/OFF 5Y 2250mm TB 4000K
2250
44.8
Textured Black
4000K
ON/OFF
CRI>90
7204
362DA.22P8.930.TW
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 DALI Push dim 5Y 2250mm TW 3000K
2250
44.8
Textured White
3000K
DALI / Switch Dim
CRI>90
6810
362NF.22P8.930.TW
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 ON/OFF 5Y 2250mm TW 3000K
2250
44.8
Textured White
3000K
ON/OFF
CRI>90
6810
362DA.22P8.940.TW
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 DALI Push dim 5Y 2250mm TW 4000K
2250
44.8
Textured White
4000K
DALI / Switch Dim
CRI>90
7204
362NF.22P8.940.TW
ORIS NEO Linear System microprismatic surface 44,8W CRI>90 80º IP40 ON/OFF 5Y 2250mm TW 4000K
2250
44.8
Textured White
4000K
ON/OFF
CRI>90
7204
362TU.22P8.92765.AL
ORIS NEO Linear System microprismatic surface 67,2W CRI>90 80º IP40 Tunable White 5Y 2250 AL 2700K -> 6500K
2250
67.2
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
6774
362TU.22P8.92765.TB
ORIS NEO Linear System microprismatic surface 67,2W CRI>90 80º IP40 Tunable White 5Y 2250 TB 2700K -> 6500K
2250
67.2
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
6774
362TU.22P8.92765.TW
ORIS NEO Linear System microprismatic surface 67,2W CRI>90 80º IP40 Tunable White 5Y 2250 TW 2700K -> 6500K
