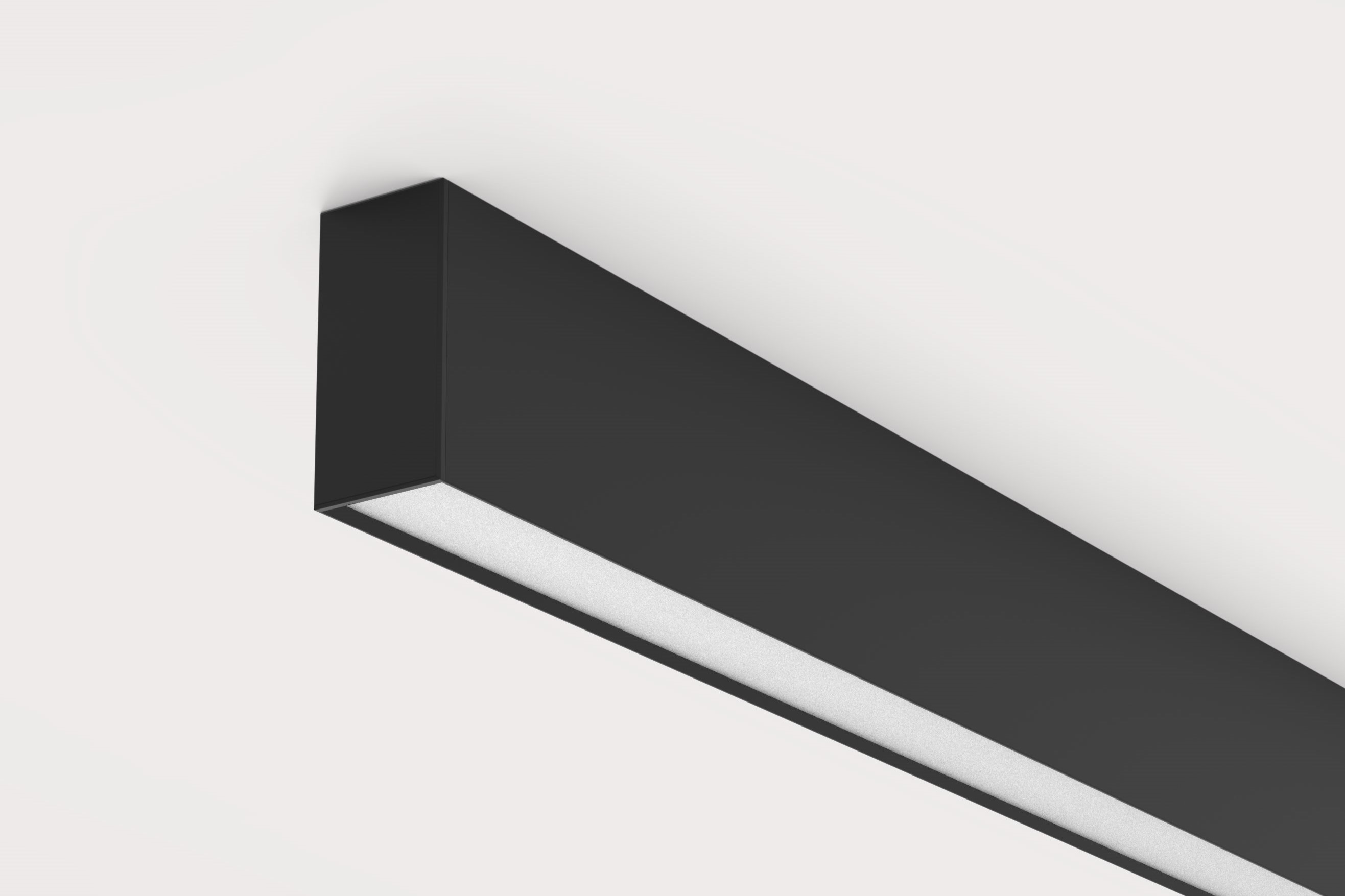

Oris NEO Linear System Surface Opal CRI>90

85 90 50

Request a Lighting Project

Description

The ORIS NEO LINEAR SYSTEMS configuration is designed for creating continuous lines of light, with or without indirect lighting, ensuring visual uniformity and consistent performance in lengths up to 50 meters. Invisible joints and a fast electrical and mechanical connection system guarantee easy installation and a professional finish.
For solutions with different types of optics or segmented lighting, please refer to the ORIS NEO MODULAR configuration.

DOWNLOADS

Data Sheet

Prices

Catalogs

Technical Details

MOUNTING TYPE		SALIENTE
LIGHT DISTRIBUTION		Direct
POWER SUPPLY		220-230V / 50-60 Hz
WARRANTY		5 Years
FINISHING		Anodized aluminium, Textured Black, Textured White
CONTROL		DALI / Switch Dim, ON/OFF, Tunable White

LED FEATURES
LUMINOUS EFFICIENCY		UP TO 196 lm/W
CRI		CRI>90, Tunable White CRI>90
LIFESPAN		50.000 Hours, 72000h Tp55
STEPS MACADAM		3 Steps MacAdam
LUMEN MAINTENANCE		L90/B50
PHOTOBIOLOGICAL RISK		RG1

SELECT YOUR ITEM CODES

Product code	LENGTH	POWER	FINISHING	COLOR TEMP.	CONTROL TYPE	LED LUMENS	LUMINAIRE LM


362DA.11O9.930.AL	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 3000K
	1130	27.1	Anodized aluminium	3000K	DALI / Switch Dim	5017	3663
362NF.11O9.930.AL	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 3000K
	1130	27.1	Anodized aluminium	3000K	ON/OFF	5017	3663
362DA.11O9.940.AL	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 4000K
	1130	27.1	Anodized aluminium	4000K	DALI / Switch Dim	5316	3880
362NF.11O9.940.AL	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 4000K
	1130	27.1	Anodized aluminium	4000K	ON/OFF	5316	3880
362DA.11O9.930.TB	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TB 3000K
	1130	27.1	Textured Black	3000K	DALI / Switch Dim	5017	3663
362NF.11O9.930.TB	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm TB 3000K
	1130	27.1	Textured Black	3000K	ON/OFF	5017	3663
362DA.11O9.940.TB	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TB 4000K
	1130	27.1	Textured Black	4000K	DALI / Switch Dim	5316	3880
362NF.11O9.940.TB	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm TB 4000K
	1130	27.1	Textured Black	4000K	ON/OFF	5316	3880
362DA.11O9.930.TW	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TW 3000K
	1130	27.1	Textured White	3000K	DALI / Switch Dim	5017	3663
362NF.11O9.930.TW	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm TW 3000K
	1130	27.1	Textured White	3000K	ON/OFF	5017	3663
362DA.11O9.940.TW	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TW 4000K
	1130	27.1	Textured White	4000K	DALI / Switch Dim	5316	3880
362NF.11O9.940.TW	ORIS NEO Linear System opal surface 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm TW 4000K
	1130	27.1	Textured White	4000K	ON/OFF	5316	3880
362TU.11O9.92765.AL	ORIS NEO Linear System opal surface 33,6W CRI>90 90º IP40 Tunable White 5Y 1130mm AL 2700K -> 6500K
	1130	33.6	Anodized aluminium	2700K - 6500K	Tunable White	4234	3091
362TU.11O9.92765.TB	ORIS NEO Linear System opal surface 33,6W CRI>90 90º IP40 Tunable White 5Y 1130mm TB 2700K -> 6500K
	1130	33.6	Textured Black	2700K - 6500K	Tunable White	4234	3091
362TU.11O9.92765.TW	ORIS NEO Linear System opal surface 33,6W CRI>90 90º IP40 Tunable White 5Y 1130mm TW 2700K -> 6500K
	1130	33.6	Textured White	2700K - 6500K	Tunable White	4234	3091
362DA.14O9.930.AL	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 DALI Push dim 5Y 1410mm AL 3000K
	1410	33.9	Anodized aluminium	3000K	DALI / Switch Dim	6272	4578
362NF.14O9.930.AL	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 ON/OFF 5Y 1410mm AL 3000K
	1410	33.9	Anodized aluminium	3000K	ON/OFF	6272	4578
362DA.14O9.940.AL	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 DALI Push dim 5Y 1410mm AL 4000K
	1410	33.9	Anodized aluminium	4000K	DALI / Switch Dim	6644	4850
362NF.14O9.940.AL	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 ON/OFF 5Y 1410mm AL 4000K
	1410	33.9	Anodized aluminium	4000K	ON/OFF	6644	4850
362DA.14O9.930.TB	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TB 3000K
	1410	33.9	Textured Black	3000K	DALI / Switch Dim	6272	4578
362NF.14O9.930.TB	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 ON/OFF 5Y 1410mm TB 3000K
	1410	33.9	Textured Black	3000K	ON/OFF	6272	4578
362DA.14O9.940.TB	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TB 4000K
	1410	33.9	Textured Black	4000K	DALI / Switch Dim	6644	4850
362NF.14O9.940.TB	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 ON/OFF 5Y 1410mm TB 4000K
	1410	33.9	Textured Black	4000K	ON/OFF	6644	4850
362DA.14O9.930.TW	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TW 3000K
	1410	33.9	Textured White	3000K	DALI / Switch Dim	6272	4578
362NF.14O9.930.TW	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 ON/OFF 5Y 1410mm TW 3000K
	1410	33.9	Textured White	3000K	ON/OFF	6272	4578
362DA.14O9.940.TW	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TW 4000K
	1410	33.9	Textured White	4000K	DALI / Switch Dim	6644	4850
362NF.14O9.940.TW	ORIS NEO Linear System opal surface 33,9W CRI>90 90º IP40 ON/OFF 5Y 1410mm TW 4000K
	1410	33.9	Textured White	4000K	ON/OFF	6644	4850
362TU.14O9.92765.AL	ORIS NEO Linear System opal surface 42W CRI>90 90º IP40 Tunable White 5Y 1410mm AL 2700K -> 6500K
	1410	42	Anodized aluminium	2700K - 6500K	Tunable White	5292	3863
362TU.14O9.92765.TB	ORIS NEO Linear System opal surface 42W CRI>90 90º IP40 Tunable White 5Y 1410mm TB 2700K -> 6500K
	1410	42	Textured Black	2700K - 6500K	Tunable White	5292	3863
362TU.14O9.92765.TW	ORIS NEO Linear System opal surface 42W CRI>90 90º IP40 Tunable White 5Y 1410mm TW 2700K -> 6500K
	1410	42	Textured White	2700K - 6500K	Tunable White	5292	3863
362DA.16O9.930.AL	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm AL 3000K
	1690	40.7	Anodized aluminium	3000K	DALI / Switch Dim	7526	5494
362NF.16O9.930.AL	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm AL 3000K
	1690	40.7	Anodized aluminium	3000K	ON/OFF	7526	5494
362DA.16O9.940.AL	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm AL 4000K
	1690	40.7	Anodized aluminium	4000K	DALI / Switch Dim	7973	5820
362NF.16O9.940.AL	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm AL 4000K
	1690	40.7	Anodized aluminium	4000K	ON/OFF	7973	5820
362DA.16O9.930.TB	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TB 3000K
	1690	40.7	Textured Black	3000K	DALI / Switch Dim	7526	5494
362NF.16O9.930.TB	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TB 3000K
	1690	40.7	Textured Black	3000K	ON/OFF	7526	5494
362DA.16O9.940.TB	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TB 4000K
	1690	40.7	Textured Black	4000K	DALI / Switch Dim	7973	5820
362NF.16O9.940.TB	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TB 4000K
	1690	40.7	Textured Black	4000K	ON/OFF	7973	5820
362DA.16O9.930.TW	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TW 3000K
	1690	40.7	Textured White	3000K	DALI / Switch Dim	7526	5494
362NF.16O9.930.TW	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TW 3000K
	1690	40.7	Textured White	3000K	ON/OFF	7526	5494
362DA.16O9.940.TW	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TW 4000K
	1690	40.7	Textured White	4000K	DALI / Switch Dim	7973	5820
362NF.16O9.940.TW	ORIS NEO Linear System opal surface 40,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TW 4000K
	1690	40.7	Textured White	4000K	ON/OFF	7973	5820
362TU.16O9.92765.AL	ORIS NEO Linear System opal surface 50,4W CRI>90 90º IP40 Tunable White 5Y 1690mm AL 2700K -> 6500K
	1690	50.4	Anodized aluminium	2700K - 6500K	Tunable White	6350	4636
362TU.16O9.92765.TB	ORIS NEO Linear System opal surface 50,4W CRI>90 90º IP40 Tunable White 5Y 1690mm TB 2700K -> 6500K
	1690	50.4	Textured Black	2700K - 6500K	Tunable White	6350	4636
362TU.16O9.92765.TW	ORIS NEO Linear System opal surface 50,4W CRI>90 90º IP40 Tunable White 5Y 1690mm TW 2700K -> 6500K
	1690	50.4	Textured White	2700K - 6500K	Tunable White	6350	4636
362DA.19O9.930.AL	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 DALI Push dim 5Y 1970mm AL 3000K
	1970	47.5	Anodized aluminium	3000K	DALI / Switch Dim	8780	6409
362NF.19O9.930.AL	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 ON/OFF 5Y 1970mm AL 3000K
	1970	47.5	Anodized aluminium	3000K	ON/OFF	8780	6409
362DA.19O9.940.AL	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 DALI Push dim 5Y 1970mm AL 4000K
	1970	47.5	Anodized aluminium	4000K	DALI / Switch Dim	9302	6791
362NF.19O9.940.AL	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 ON/OFF 5Y 1970mm AL 4000K
	1970	47.5	Anodized aluminium	4000K	ON/OFF	9302	6791
362DA.19O9.930.TB	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TB 3000K
	1970	47.5	Textured Black	3000K	DALI / Switch Dim	8780	6409
362NF.19O9.930.TB	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 ON/OFF 5Y 1970mm TB 3000K
	1970	47.5	Textured Black	3000K	ON/OFF	8780	6409
362DA.19O9.940.TB	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TB 4000K
	1970	47.5	Textured Black	4000K	DALI / Switch Dim	9302	6791
362NF.19O9.940.TB	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 ON/OFF 5Y 1970mm TB 4000K
	1970	47.5	Textured Black	4000K	ON/OFF	9302	6791
362DA.19O9.930.TW	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TW 3000K
	1970	47.5	Textured White	3000K	DALI / Switch Dim	8780	6409
362NF.19O9.930.TW	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 ON/OFF 5Y 1970mm TW 3000K
	1970	47.5	Textured White	3000K	ON/OFF	8780	6409
362DA.19O9.940.TW	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TW 4000K
	1970	47.5	Textured White	4000K	DALI / Switch Dim	9302	6791
362NF.19O9.940.TW	ORIS NEO Linear System opal surface 47,5W CRI>90 90º IP40 ON/OFF 5Y 1970mm TW 4000K
	1970	47.5	Textured White	4000K	ON/OFF	9302	6791
362TU.19O9.92765.AL	ORIS NEO Linear System opal surface 58,8W CRI>90 90º IP40 Tunable White 5Y 1970mm AL 2700K -> 6500K
	1970	58.8	Anodized aluminium	2700K - 6500K	Tunable White	7409	5408
362TU.19O9.92765.TB	ORIS NEO Linear System opal surface 58,8W CRI>90 90º IP40 Tunable White 5Y 1970mm TB 2700K -> 6500K
	1970	58.8	Textured Black	2700K - 6500K	Tunable White	7409	5408
362TU.19O9.92765.TW	ORIS NEO Linear System opal surface 58,8W CRI>90 90º IP40 Tunable White 5Y 1970mm TW 2700K -> 6500K
	1970	58.8	Textured White	2700K - 6500K	Tunable White	7409	5408
362DA.22O9.930.AL	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 DALI Push dim 5Y 2250mm AL 3000K
	2250	54.2	Anodized aluminium	3000K	DALI / Switch Dim	10034	7325
362NF.22O9.930.AL	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 ON/OFF 5Y 2250mm AL 3000K
	2250	54.2	Anodized aluminium	3000K	ON/OFF	10034	7325
362DA.22O9.940.AL	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 DALI Push dim 5Y 2250mm AL 4000K
	2250	54.2	Anodized aluminium	4000K	DALI / Switch Dim	10631	7761
362NF.22O9.940.AL	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 ON/OFF 5Y 2250mm AL 4000K
	2250	54.2	Anodized aluminium	4000K	ON/OFF	10631	7761
362DA.22O9.930.TB	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TB 3000K
	2250	54.2	Textured Black	3000K	DALI / Switch Dim	10034	7325
362NF.22O9.930.TB	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 ON/OFF 5Y 2250mm TB 3000K
	2250	54.2	Textured Black	3000K	ON/OFF	10034	7325
362DA.22O9.940.TB	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TB 4000K
	2250	54.2	Textured Black	4000K	DALI / Switch Dim	10631	7761
362NF.22O9.940.TB	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 ON/OFF 5Y 2250mm TB 4000K
	2250	54.2	Textured Black	4000K	ON/OFF	10631	7761
362DA.22O9.930.TW	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TW 3000K
	2250	54.2	Textured White	3000K	DALI / Switch Dim	10034	7325
362NF.22O9.930.TW	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 ON/OFF 5Y 2250mm TW 3000K
	2250	54.2	Textured White	3000K	ON/OFF	10034	7325
362DA.22O9.940.TW	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TW 4000K
	2250	54.2	Textured White	4000K	DALI / Switch Dim	10631	7761
362NF.22O9.940.TW	ORIS NEO Linear System opal surface 54,2W CRI>90 90º IP40 ON/OFF 5Y 2250mm TW 4000K
	2250	54.2	Textured White	4000K	ON/OFF	10631	7761
362TU.22O9.92765.AL	ORIS NEO Linear System opal surface 67,2W CRI>90 90º IP40 Tunable White 5Y 2250 AL 2700K -> 6500K
	2250	67.2	Anodized aluminium	2700K - 6500K	Tunable White	8467	6181
362TU.22O9.92765.TB	ORIS NEO Linear System opal surface 67,2W CRI>90 90º IP40 Tunable White 5Y 2250 TB 2700K -> 6500K
	2250	67.2	Textured Black	2700K - 6500K	Tunable White	8467	6181
362TU.22O9.92765.TW	ORIS NEO Linear System opal surface 67,2W CRI>90 90º IP40 Tunable White 5Y 2250 TW 2700K -> 6500K
	2250	67.2	Textured White	2700K - 6500K	Tunable White	8467	6181
SeeMore...
