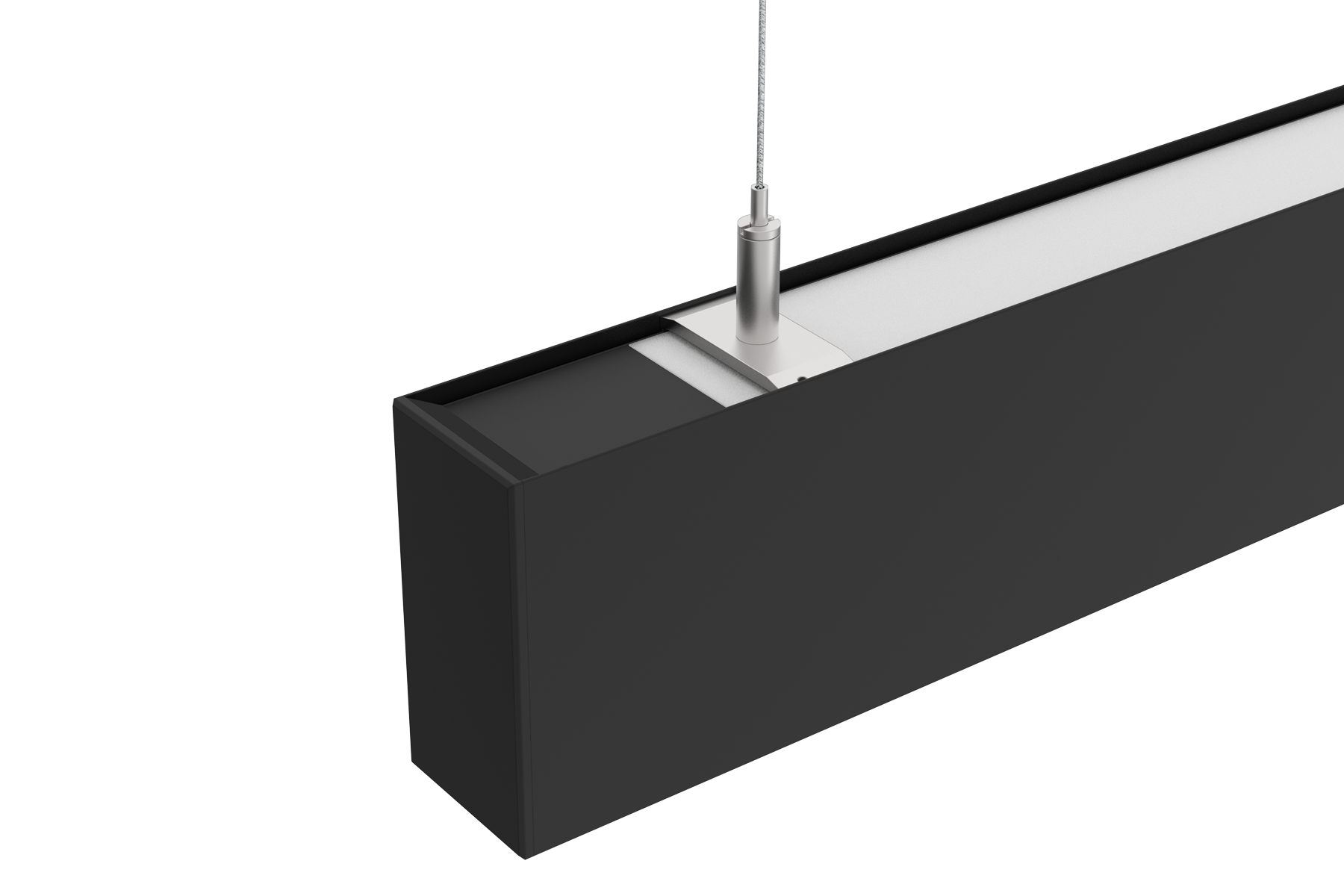

ORIS NEO SUSPENDED DIRECT/INDIRECT OPAL + OPAL CRI>90

ORIS NEO D/I OPAL+OPAL
85 90 50
Request a Lighting Project

ORIS NEO is designed to offer maximum flexibility and performance in technical and architectural lighting projects. It is available in direct or direct/indirect (D/I) lighting versions, allowing the light distribution to be adjusted according to function and ambiance.

The range is divided into three main configurations, with lengths, applications, and accessories adaptable to every need:

ORIS NEO (Individual Modules), ORIS NEO LINEAR SYSTEMS, and ORIS NEO MODULAR.

Available in lengths from 570 mm up to 5090 mm in a single piece, without joints.

Options include opal and microprismatic diffusers, low-glare square or round lenses in various colors.

CRI >90 ensures accurate and faithful color rendering.

Offers the Tunable White option, allowing adjustment of the color temperature according to the needs of the space.

MOUNTING TYPE    Suspension
LIGHT DISTRIBUTION    Direct, Direct and Indirect
POWER SUPPLY    220-230V / 50-60 Hz
WARRANTY    5 Years
FINISHING    Anodized aluminium, Textured Black, Textured White
CONTROL    CASAMBI, DALI / Switch Dim, ON/OFF, Tunable White



LED FEATURES
LUMINOUS EFFICIENCY  UP TO 199 lm/W
CRI  CRI>90, Tunable White CRI>90
LIFESPAN  50.000 Hours, 72000h Tp55
STEPS MACADAM  3 Steps MacAdam
LUMEN MAINTENANCE  L90/B50
PHOTOBIOLOGICAL RISK  RG1
Product code LENGTH POWER FINISHING COLOR TEMP. CONTROL TYPE LED LUMENS LUMINAIRE LM


520CS.11O9.930.ALORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 CASAMBI 5Y 1130mm AL 3000K
 113033.7Anodized aluminium3000KCASAMBI63314621
520DA.11O9.930.ALORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 3000K
 113033.7Anodized aluminium3000KDALI / Switch Dim63314621
520NF.11O9.930.ALORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 3000K
 113033.7Anodized aluminium3000KON/OFF63314621
520CS.11O9.940.ALORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 CASAMBI 5Y 1130mm AL 4000K
 113033.7Anodized aluminium4000KCASAMBI67024892
520DA.11O9.940.ALORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 4000K
 113033.7Anodized aluminium4000KDALI / Switch Dim67024892
520NF.11O9.940.ALORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 4000K
 113033.7Anodized aluminium4000KON/OFF67024892
520CS.11O9.930.TBORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 CASAMBI 5Y 1130mm TB 3000K
 113033.7Textured Black3000KCASAMBI63314621
520DA.11O9.930.TBORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TB 3000K
 113033.7Textured Black3000KDALI / Switch Dim63314621
520NF.11O9.930.TBORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm TB 3000K
 113033.7Textured Black3000KON/OFF63314621
520CS.11O9.940.TBORIS NEO opal D/I light suspended 33,7W CRI>90 90º IP40 CASAMBI 5Y 1130mm TB 4000K
 113033.7Textured Black4000KCASAMBI67024892
