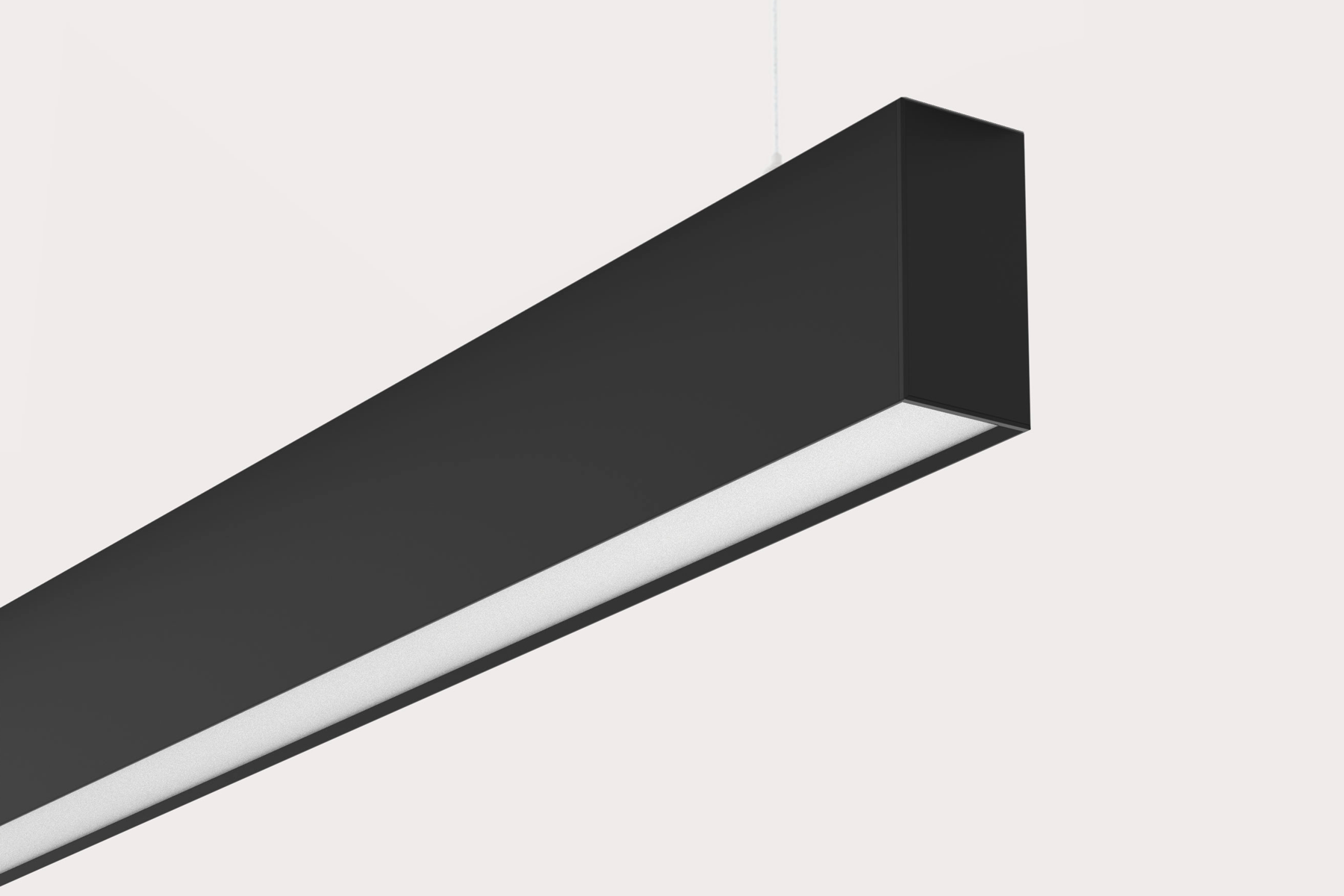

ORIS NEO SUSPENDED OPAL CRI>90 - DIRECT LIGHTING

Description

ORIS NEO is designed to offer maximum flexibility and performance in technical and architectural lighting projects. It is available in direct or direct/indirect (D/I) lighting versions, allowing the light distribution to be adjusted according to function and ambiance.

The range is divided into three main configurations, with lengths, applications, and accessories adaptable to every need:

ORIS NEO (Individual Modules), ORIS NEO LINEAR SYSTEMS, and ORIS NEO MODULAR.

Available in lengths from 570 mm up to 5090 mm in a single piece, without joints.

Options include opal and microprismatic diffusers, low-glare square or round lenses in various colors.

CRI >90 ensures accurate and faithful color rendering.

Offers the Tunable White option, allowing adjustment of the color temperature according to the needs of the space.

Technical Details

MOUNTING TYPE  Suspension
LIGHT DISTRIBUTION  Direct
POWER SUPPLY  220-230V / 50-60 Hz
WARRANTY  5 Years
FINISHING  Textured Black, Anodized aluminium, Textured White
CONTROL  DALI / Switch Dim, CASAMBI, ON/OFF, Tunable White



LED FEATURES

LUMINOUS EFFICIENCY  UP TO 196 lm/W
CRI  CRI>90, Tunable White CRI>90
LIFESPAN  72000h Tp55, 50.000 Hours
STEPS MACADAM  3 Steps MacAdam
LUMEN MAINTENANCE  L90/B50
PHOTOBIOLOGICAL RISK  RG1
Product code
Description
357CS.11O9.930.ALORIS NEO opal suspended 27,1W CRI>90 90º IP40 CASAMBI 5Y 1130mm AL 3000K113027.1Anodized aluminium3000KCASAMBICRI>903663
357DA.11O9.930.ALORIS NEO opal suspended 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 3000K113027.1Anodized aluminium3000KDALI / Switch DimCRI>903663
357NF.11O9.930.ALORIS NEO opal suspended 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 3000K113027.1Anodized aluminium3000KON/OFFCRI>903663
357CS.11O9.940.ALORIS NEO opal suspended 27,1W CRI>90 90º IP40 CASAMBI 5Y 1130mm AL 4000K113027.1Anodized aluminium4000KCASAMBICRI>903880
357DA.11O9.940.ALORIS NEO opal suspended 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 4000K113027.1Anodized aluminium4000KDALI / Switch DimCRI>903880
357NF.11O9.940.ALORIS NEO opal suspended 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 4000K113027.1Anodized aluminium4000KON/OFFCRI>903880
357CS.11O9.930.TBORIS NEO opal suspended 27,1W CRI>90 90º IP40 CASAMBI 5Y 1130mm TB 3000K113027.1Textured Black3000KCASAMBICRI>903663
357DA.11O9.930.TBORIS NEO opal suspended 27,1W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TB 3000K113027.1Textured Black3000KDALI / Switch DimCRI>903663
357NF.11O9.930.TBORIS NEO opal suspended 27,1W CRI>90 90º IP40 ON/OFF 5Y 1130mm TB 3000K113027.1Textured Black3000KON/OFFCRI>903663
357CS.11O9.940.TBORIS NEO opal suspended 27,1W CRI>90 90º IP40 CASAMBI 5Y 1130mm TB 4000K113027.1Textured Black4000KCASAMBICRI>903880
See More...
