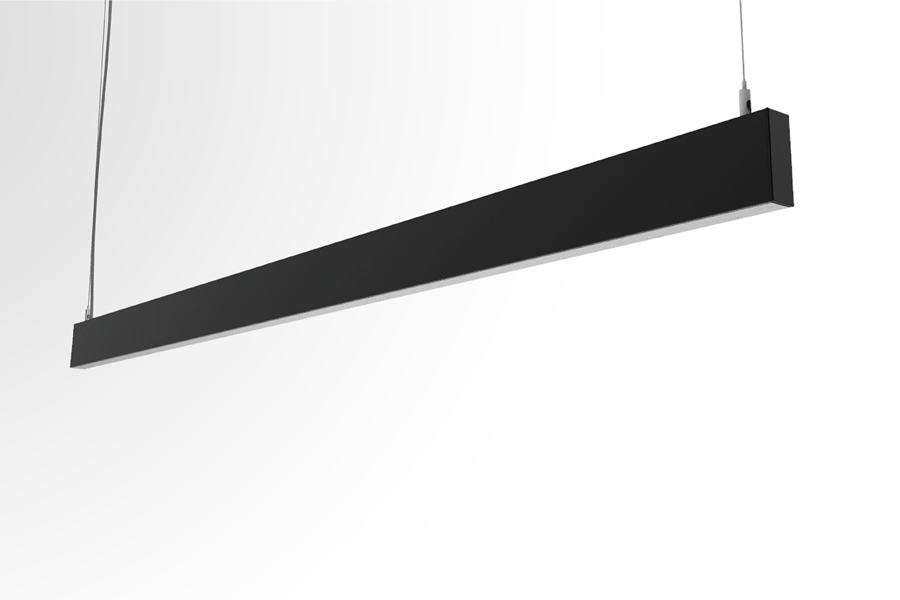

Oris Slim Pro Suspended Prismatic

Oris Slim Pro Prismatic
Request a quotation
Request more information
Where to buy?
85 90 50

Oris SlimPro The reduced dimensions of only 26 mm in width make this luminaire slim and distinctive. With a minimalist design, this light fixture was designed for refined spaces, where lighting is discreet, but efficient and with a high CRI. Oris SlimPro has the options of direct/indirect light, opal and prismatic diffuser, different beam angles, low glare reflectors and lenses, and comes in versions adaptable for ceilings, surface or walls. Specially developed to meet the requirements of architects, who are looking for thin and modular lighting fixtures. With SlimPro, it’s possible to mount slim lines of light up to 3,375m without the need of joints. A selection of finishing colours starting from white, black to silver. The LED profiles come as well with the options to be configured in ON-OFF, DALI or CASAMBI.

MOUNTING TYPE    Suspension
LIGHT DISTRIBUTION    Direct
POWER SUPPLY    220-230V / 50-60 Hz
WARRANTY    5 Years
FINISHING    Anodized aluminium, Textured Black, Textured White
CONTROL    DALI / Switch Dim, ON/OFF



LED FEATURES
LUMINOUS EFFICIENCY  UP TO 155 lm/W
CRI  CRI>90
LIFESPAN  50.000 Hours
STEPS MACADAM  3 Steps MacAdam
LUMEN MAINTENANCE  L90/B50
PHOTOBIOLOGICAL RISK  RG1
Product code LENGTH POWER FINISHING COLOR TEMP. CONTROL TYPE LED LUMENS LUMINAIRE LM


240NF.11P8.940.ALOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm AL 4000K
 113020.4Anodized aluminium4000KON/OFF31521598
240DA.11P8.930.TBOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TB 3000K
 113020.4Textured Black3000KDALI / Switch Dim29961518
240NF.11P8.930.TBOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TB 3000K
 113020.4Textured Black3000KON/OFF29961518
240DA.11P8.940.TBOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TB 4000K
 113020.4Textured Black4000KDALI / Switch Dim31521598
240NF.11P8.940.TBOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TB 4000K
 113020.4Textured Black4000KON/OFF31521598
240DA.11P8.930.TWOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TW 3000K
 113020.4Textured White3000KDALI / Switch Dim29961518
240NF.11P8.930.TWOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TW 3000K
 113020.4Textured White3000KON/OFF29961518
240DA.11P8.940.TWOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 DALI Push dim 5Y 1130mm TW 4000K
 113020.4Textured White4000KDALI / Switch Dim31521598
240NF.11P8.940.TWOris SlimPro prismatic suspended 20,4W CRI>90 80º IP40 ON/OFF 5Y 1130mm TW 4000K
 113020.4Textured White4000KON/OFF31521598
240DA.14P8.930.ALOris SlimPro prismatic suspended 25,5W CRI>90 80º IP40 DALI Push dim 5Y 1410mm AL 3000K
 141025.6Anodized aluminium3000KDALI / Switch Dim37441898

Suspension Kit Product code
Suspension kit 1,5m (1un) Silver 80303017.SL
Suspension kit 3 m (1un) Silver 80303018.SL
Suspension kit 5 m (1un) Silver 80303019.SL



Ceiling Rose Recessed Product code
Ceiling Rose Recessed Textured Black 80303020.TB
Ceiling Rose Recessed Textured Silver 80303020.TS
Ceiling Rose Recessed Textured White 80303020.TW



Ceiling Rose Surface Product code
Ceiling Rose Surface Textured Black 80303021.TB
Ceiling Rose Surface Textured Silver 80303021.TS
Ceiling Rose Surface Textured White 80303021.TW



Power Cable 0,75 Product code
Power Cable 1.5m Dim Control 80303004
Power Cable 1.5m ON/Off 80303001
Power Cable 3m Dim Control 80303005
Power Cable 3m ON/Off 80303002
Power Cable 5m Dim Control 80303006
Power Cable 5m ON/Off 80303003



Casambi - DALI Interface Product code
Casambi - DALI Interface CASAMBI 8030-2590
