Proliner Opal Magnetic System 48V

Proliner Opal 48V
Request a quotation
Request more information
Where to buy?
79 80 91

The PROLINER is a magical line of light. Consisting of particularly narrow modules, it allows the creation of a versatile light line in a low-voltage magnetic rail. It is composed of 3 different light modules. A module with opal or prismatic polycarbonate diffuser, a module with a low glare reflector, and a module with a 90° lens to control the beam angle. By combining these modules, the PROLINER draws a thin and elegant light line through its opal polycarbonate diffuser. In the low glare version, the light is emitted in a recessed way, protecting the eyes and highlighting the more reliably colours of the lightened objects. The option with a 90º lens allows creating the best light distribution according to the space and to focus the light on specific points. The magnetic application allows the greater flexibility of light configuration in space, and can be reconfigured with complete freedom, without resourcing to specialized technicians or special tools. The magnetic rails where the PROLINER is installed are low voltage (48V). PROLINER has been specially designed to be combined with APALIS or ROSS. These discreet application luminaires in magnetic rails are specially intended for lighting projects where the reconfiguration of spaces and objects may occur regularly, such as, stores, art galleries, museums, exhibition venues, etc... Together, these products can make your lighting project a truly magical space.

MOUNTING TYPE    Magnetic
LIGHT DISTRIBUTION    Direct
POWER SUPPLY    48V / TRACK
WARRANTY    5 Years
FINISHING    Black, White
CONTROL    CASAMBI, DALI, ON/OFF



LED FEATURES
LUMINOUS EFFICIENCY  UP TO 155 lm/W
CRI  CRI>90
LIFESPAN  50.000 Hours
STEPS MACADAM  3 Steps MacAdam
LUMEN MAINTENANCE  L90/B50
PHOTOBIOLOGICAL RISK  RG1
Product code POWER FINISHING COLOR TEMP. CONTROL TYPE BEAM ANGLE LED LUMENS LUMINAIRE LM LED EFFICIENCY


353CS.05O9.930.BLProliner 10,3W CRI>90 90º opal IP40 CASAMBI 5Y 570mm BL 3000K
 10,3Black3000KCASAMBI9014981007147
353CS.05O9.940.BLProliner 10,3W CRI>90 90º opal IP40 CASAMBI 5Y 570mm BL 4000K
 10,3Black4000KCASAMBI9015761060155
353CS.05O9.930.WHProliner 10,3W CRI>90 90º opal IP40 CASAMBI 5Y 570mm WH 3000K
 10,3White3000KCASAMBI9014981007147
353CS.05O9.940.WHProliner 10,3W CRI>90 90º opal IP40 CASAMBI 5Y 570mm WH 4000K
 10,3White4000KCASAMBI9015761060155
353DL.05O9.930.BLProliner 10,3W CRI>90 90º opal IP40 DALI 5Y 570mm BL 3000K
 10,3Black3000KDALI9014981007147
353DL.05O9.940.BLProliner 10,3W CRI>90 90º opal IP40 DALI 5Y 570mm BL 4000K
 10,3Black4000KDALI9015761060155
353DL.05O9.930.WHProliner 10,3W CRI>90 90º opal IP40 DALI 5Y 570mm WH 3000K
 10,3White3000KDALI9014981007147
353DL.05O9.940.WHProliner 10,3W CRI>90 90º opal IP40 DALI 5Y 570mm WH 4000K
 10,3White4000KDALI9015761060155
353NF.05O9.930.BLProliner 10,3W CRI>90 90º opal IP40 ON/OFF 5Y 570mm BL 3000K
 10,3Black3000KON/OFF9014981007147
353NF.05O9.940.BLProliner 10,3W CRI>90 90º opal IP40 ON/OFF 5Y 570mm BL 4000K
 10,3Black4000KON/OFF9015761060155

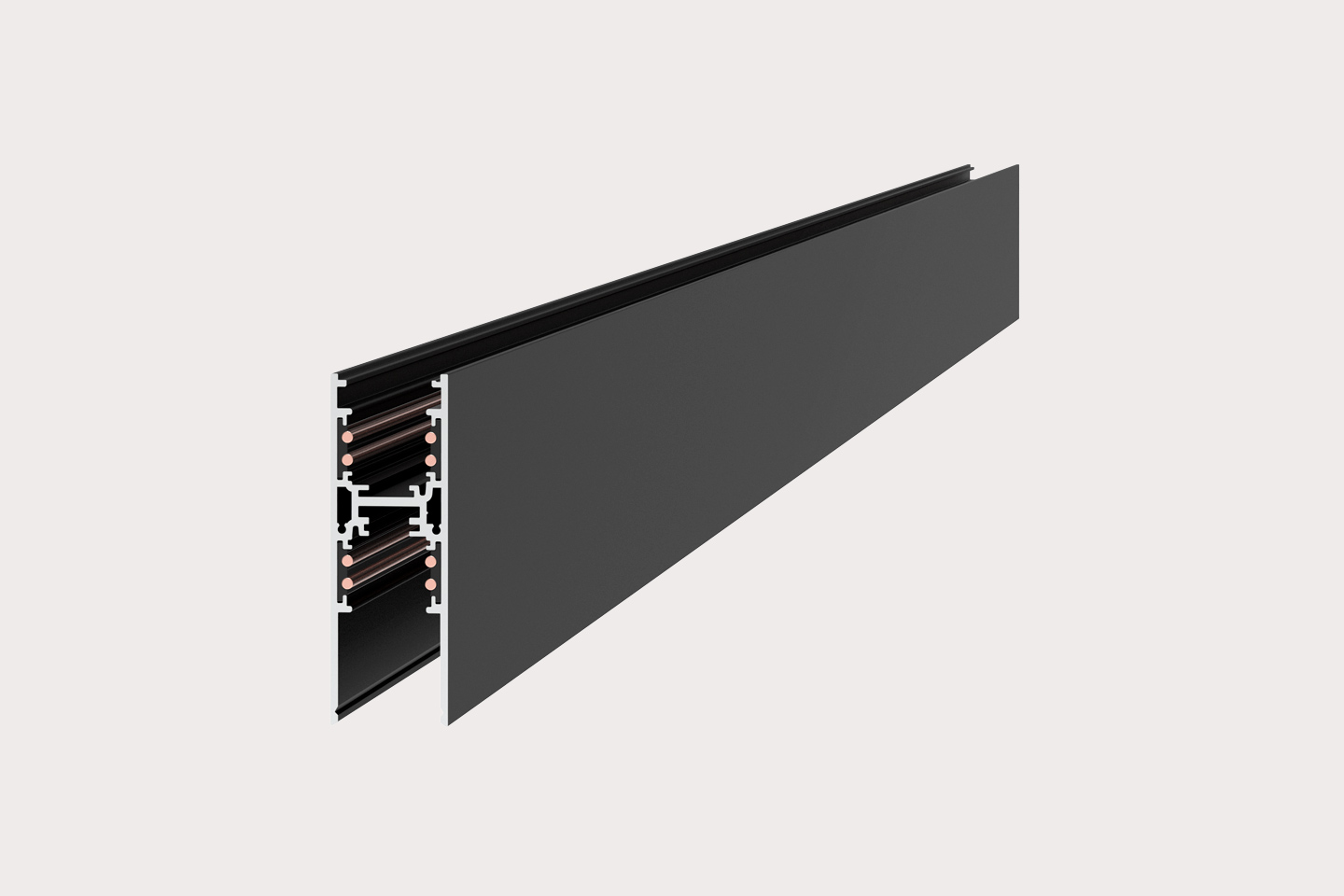

BT1 Magnetic Track Product code
Magnetic Track 48V 1M Black 3080-0175.BL
Magnetic Track 48V 1M White 3080-0175.WH
Magnetic Track 48V 2M Black 3080-0176.BL
Magnetic Track 48V 2M White 3080-0176.WH

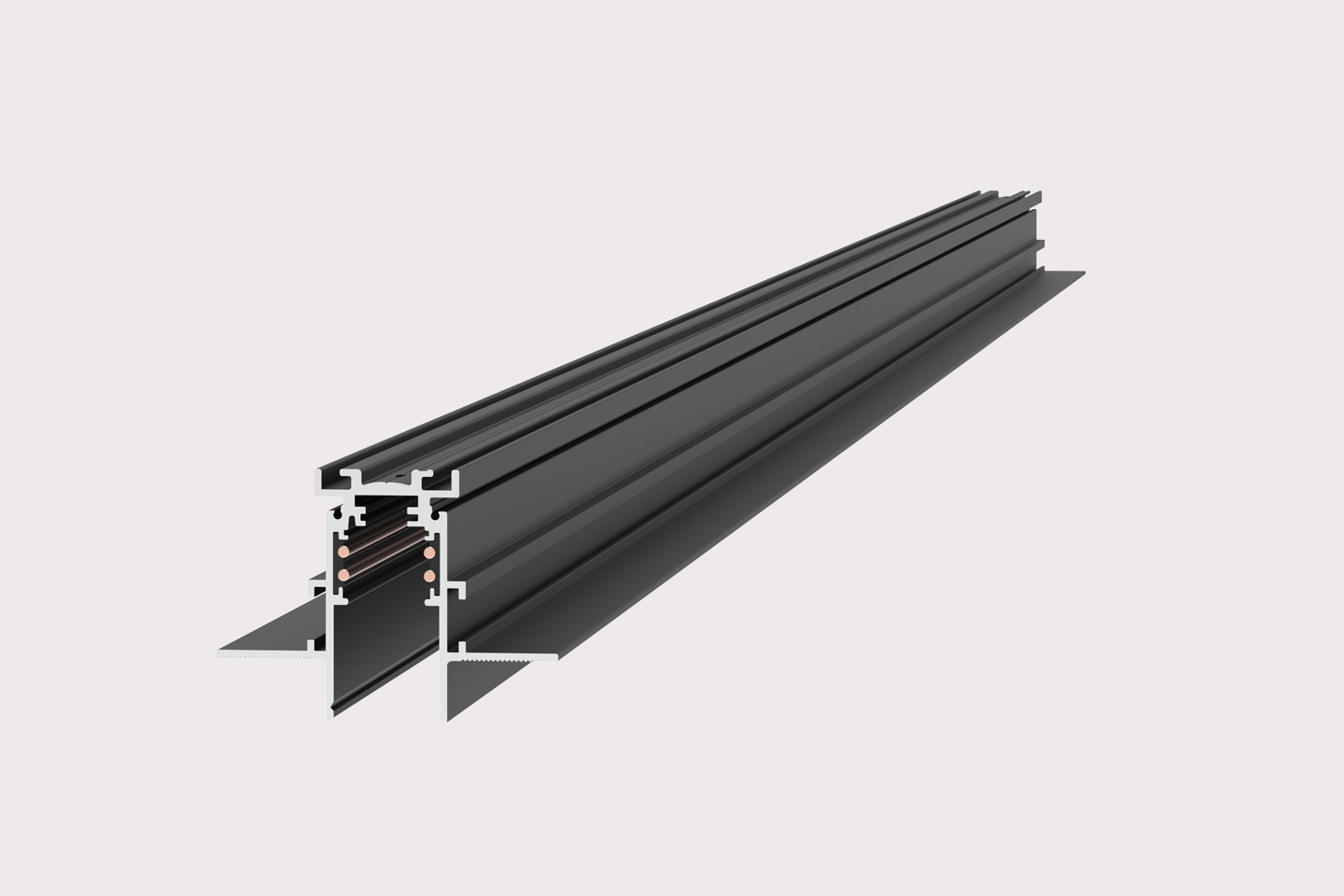

BT2 Magnetic Track Product code
Magnetic Track 48V 1M Black 3080-0177.BL
Magnetic Track 48V 1M White 3080-0177.WH
Magnetic Track 48V 2M Black 3080-0178.BL
Magnetic Track 48V 2M White 3080-0178.WH



TK3 Magnetic Track Product code
Magnetic Track 48V 1M Black 3080-0205.BL
Magnetic Track 48V 1M White 3080-0205.WH
Magnetic Track 48V 2M Black 3080-0206.BL
Magnetic Track 48V 2M White 3080-0206.WH



TK5 Magnetic Track Product code
Magnetic Track 48V 1M Black 3080-0250.BL
Magnetic Track 48V 1M White 3080-0250.WH
Magnetic Track 48V 2M Black 3080-0251.BL
Magnetic Track 48V 2M White 3080-0251.WH



TK9 Magnetic Track Product code
Magnetic Track 48V 1M Black 3080-0211.BL
Magnetic Track 48V 1M White 3080-0211.WH
Magnetic Track 48V 2M Black 3080-0212.BL
Magnetic Track 48V 2M White 3080-0212.WH
