IRIS Horizontal Linear LED Light 360º - MODULE 1226mm
Request a quotation
Request more information
Where to buy?
76
80
56

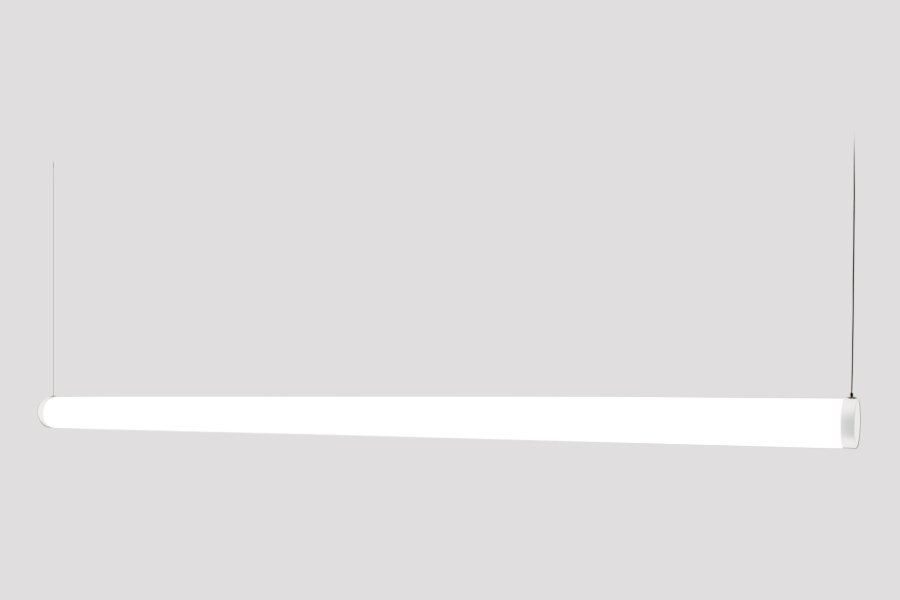

IRIS tubular 360º is an elegant lighting fixture with a minimalist design. It is available from 300mm to 1500mm lengths ranging. Drawing a perfect linear light, IRIS is suitable for lighting up effectively any indoor area through a beautiful, uniform and harmonious light. Tubular fixture composed of an opal polycarbonate tube and aluminium end caps; white or black textured finishin; 360º light emission. IRIS can be suspended horizontally or vertically, surface mounted or recessed in the ceiling. It can also be placed in a magnetic or in a 3-circuits universal track. In both cases, it can be combined with other Brilumen track lights.
| LIGHT DISTRIBUTION | Direct |
| WARRANTY | 5 Years |
| FINISHING | Textured Black, Textured White |
| LED FEATURES | |
| LUMINOUS EFFICIENCY | UP TO 199 lm/W |
| CRI | CRI>80, CRI>90 |
| LIFESPAN | 50.000 Hours |
| STEPS MACADAM | 3 Steps MacAdam |
| LUMEN MAINTENANCE | L90/B50 |
| PHOTOBIOLOGICAL RISK | RG1 |
| Product code | DIMENSION | POWER | FINISHING | COLOR TEMP. | LED LUMENS | LUMINAIRE LM | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 163H.12.930.TB | Iris-H 28,1W CRI>90 360º IP40 5Y 1226mm TB 3000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured Black | 3000K | 4408 | 3637 | |||||||||||||||
| 164H.12.830.TB | Iris-H 28,1W CRI>80 360º IP40 5Y 1226mm TB 3000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured Black | 3000K | 5267 | 4345 | |||||||||||||||
| 163H.12.940.TB | Iris-H 28,1W CRI>90 360º IP40 5Y 1226mm TB 4000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured Black | 4000K | 4667 | 3850 | |||||||||||||||
| 164H.12.840.TB | Iris-H 28,1W CRI>80 360º IP40 5Y 1226mm TB 4000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured Black | 4000K | 5577 | 4601 | |||||||||||||||
| 163H.12.930.TW | Iris-H 28,1W CRI>90 360º IP40 5Y 1226mm TW 3000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured White | 3000K | 4408 | 3637 | |||||||||||||||
| 164H.12.830.TW | Iris-H 28,1W CRI>80 360º IP40 5Y 1226mm TW 3000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured White | 3000K | 5267 | 4345 | |||||||||||||||
| 163H.12.940.TW | Iris-H 28,1W CRI>90 360º IP40 5Y 1226mm TW 4000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured White | 4000K | 4667 | 3850 | |||||||||||||||
| 164H.12.840.TW | Iris-H 28,1W CRI>80 360º IP40 5Y 1226mm TW 4000K | |||||||||||||||||||
| 1226 | 28,10835 | Textured White | 4000K | 5577 | 4601 | |||||||||||||||
 |  |
|
|||||||||||||||
 | |
|
|||||||||||||||
 | |
|
|||||||||||||||
 | |
|
|||||||||||||||
 | |
|
|||||||||||||||
 | |
|
