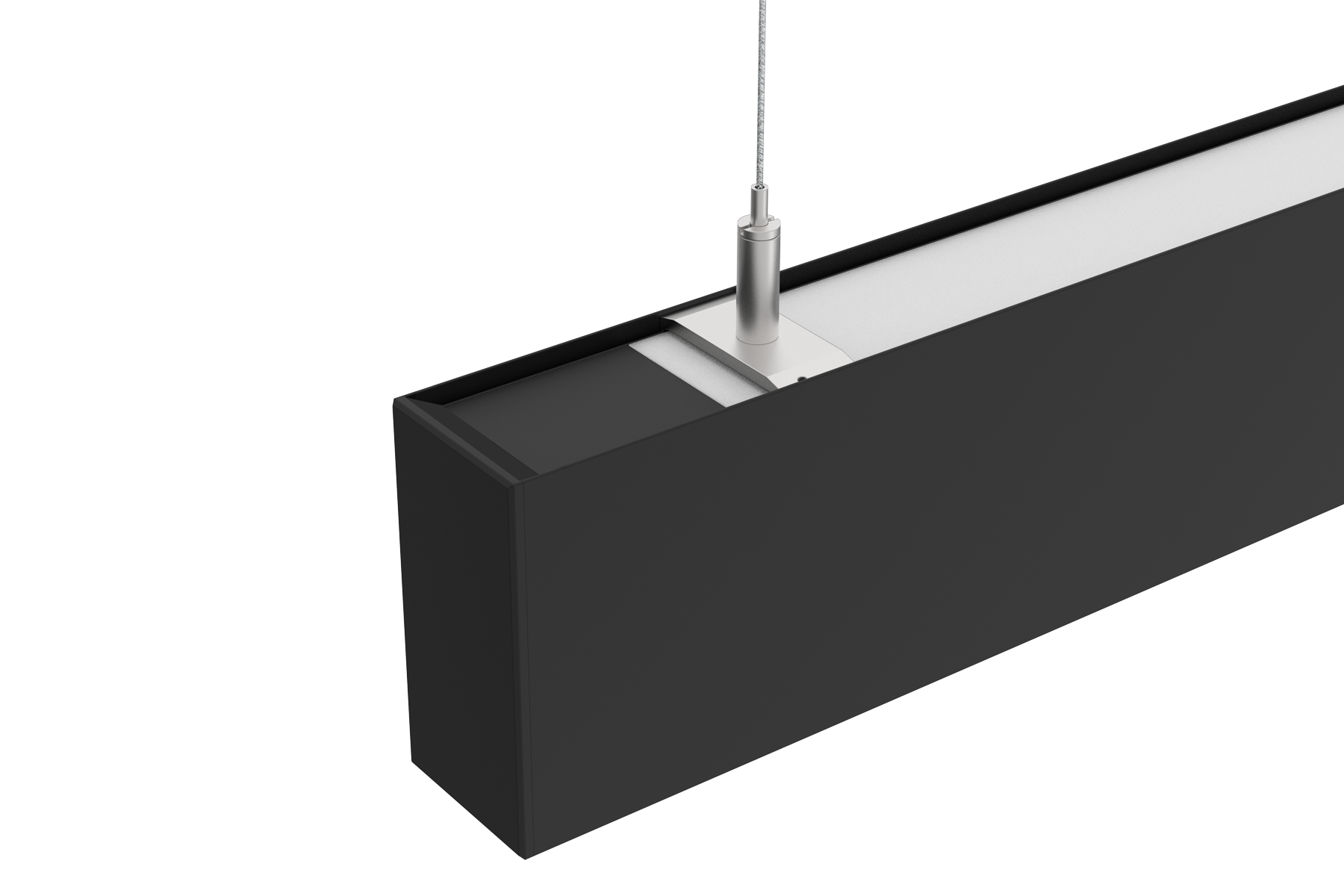

The ORIS NEO LINEAR SYSTEMS configuration is designed for creating continuous lines of light, with or without indirect lighting, ensuring visual uniformity and consistent performance in lengths up to 50 meters. Invisible joints and a fast electrical and mechanical connection system guarantee easy installation and a professional finish. For solutions with different types of optics or segmented lighting, please refer to the ORIS NEO MODULAR configuration.
Technical Details
MOUNTING TYPE
Suspension
LIGHT DISTRIBUTION
Direct and Indirect
POWER SUPPLY
220-230V / 50-60 Hz
WARRANTY
5 Years
FINISHING
Anodized aluminium, Textured Black, Textured White
CONTROL
DALI / Switch Dim, ON/OFF, Tunable White
LED FEATURES
LUMINOUS EFFICIENCY
UP TO 199 lm/W
CRI
CRI>90, Tunable White CRI>90
LIFESPAN
50.000 Hours, 72000h Tp55
STEPS MACADAM
3 Steps MacAdam
LUMEN MAINTENANCE
L90/B50
PHOTOBIOLOGICAL RISK
RG1
Product code
Description
522DA.11O9.930.AL
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 3000K
1130
33.7
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
4621
522NF.11O9.930.AL
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 3000K
1130
33.7
Anodized aluminium
3000K
ON/OFF
CRI>90
4621
522DA.11O9.940.AL
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm AL 4000K
1130
33.7
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
4892
522NF.11O9.940.AL
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm AL 4000K
1130
33.7
Anodized aluminium
4000K
ON/OFF
CRI>90
4892
522DA.11O9.930.TB
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TB 3000K
1130
33.7
Textured Black
3000K
DALI / Switch Dim
CRI>90
4621
522NF.11O9.930.TB
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm TB 3000K
1130
33.7
Textured Black
3000K
ON/OFF
CRI>90
4621
522DA.11O9.940.TB
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TB 4000K
1130
33.7
Textured Black
4000K
DALI / Switch Dim
CRI>90
4892
522NF.11O9.940.TB
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm TB 4000K
1130
33.7
Textured Black
4000K
ON/OFF
CRI>90
4892
522DA.11O9.930.TW
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TW 3000K
1130
33.7
Textured White
3000K
DALI / Switch Dim
CRI>90
4621
522NF.11O9.930.TW
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm TW 3000K
1130
33.7
Textured White
3000K
ON/OFF
CRI>90
4621
522DA.11O9.940.TW
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 DALI Push dim 5Y 1130mm TW 4000K
1130
33.7
Textured White
4000K
DALI / Switch Dim
CRI>90
4892
522NF.11O9.940.TW
ORIS NEO Linear System opal D/I light suspended 33,7W CRI>90 90º IP40 ON/OFF 5Y 1130mm TW 4000K
1130
33.7
Textured White
4000K
ON/OFF
CRI>90
4892
522DA.14O9.930.AL
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 DALI Push dim 5Y 1410mm AL 3000K
1410
42.7
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
5857
522NF.14O9.930.AL
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 ON/OFF 5Y 1410mm AL 3000K
1410
42.7
Anodized aluminium
3000K
ON/OFF
CRI>90
5857
522DA.14O9.940.AL
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 DALI Push dim 5Y 1410mm AL 4000K
1410
42.7
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
6199
522NF.14O9.940.AL
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 ON/OFF 5Y 1410mm AL 4000K
1410
42.7
Anodized aluminium
4000K
ON/OFF
CRI>90
6199
522DA.14O9.930.TB
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TB 3000K
1410
42.7
Textured Black
3000K
DALI / Switch Dim
CRI>90
5857
522NF.14O9.930.TB
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 ON/OFF 5Y 1410mm TB 3000K
1410
42.7
Textured Black
3000K
ON/OFF
CRI>90
5857
522DA.14O9.940.TB
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TB 4000K
1410
42.7
Textured Black
4000K
DALI / Switch Dim
CRI>90
6199
522NF.14O9.940.TB
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 ON/OFF 5Y 1410mm TB 4000K
1410
42.7
Textured Black
4000K
ON/OFF
CRI>90
6199
522DA.14O9.930.TW
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TW 3000K
1410
42.7
Textured White
3000K
DALI / Switch Dim
CRI>90
5857
522NF.14O9.930.TW
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 ON/OFF 5Y 1410mm TW 3000K
1410
42.7
Textured White
3000K
ON/OFF
CRI>90
5857
522DA.14O9.940.TW
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 DALI Push dim 5Y 1410mm TW 4000K
1410
42.7
Textured White
4000K
DALI / Switch Dim
CRI>90
6199
522NF.14O9.940.TW
ORIS NEO Linear System opal D/I light suspended 42,7W CRI>90 90º IP40 ON/OFF 5Y 1410mm TW 4000K
1410
42.7
Textured White
4000K
ON/OFF
CRI>90
6199
522TU.14O9.92765.AL
ORIS NEO Linear System opal D/I light suspended 58,8W CRI>90 90º IP40 Tunable White 5Y 1410mm AL 2700K -> 6500K
1410
58.8
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
5408
522TU.14O9.92765.TB
ORIS NEO Linear System opal D/I light suspended 58,8W CRI>90 90º IP40 Tunable White 5Y 1410mm TB 2700K -> 6500K
1410
58.8
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
5408
522TU.14O9.92765.TW
ORIS NEO Linear System opal D/I light suspended 58,8W CRI>90 90º IP40 Tunable White 5Y 1410mm TW 2700K -> 6500K
1410
58.8
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
5408
522DA.16O9.930.AL
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm AL 3000K
1690
51.7
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
7092
522NF.16O9.930.AL
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm AL 3000K
1690
51.7
Anodized aluminium
3000K
ON/OFF
CRI>90
7092
522DA.16O9.940.AL
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm AL 4000K
1690
51.7
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
7507
522NF.16O9.940.AL
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm AL 4000K
1690
51.7
Anodized aluminium
4000K
ON/OFF
CRI>90
7507
522DA.16O9.930.TB
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TB 3000K
1690
51.7
Textured Black
3000K
DALI / Switch Dim
CRI>90
7092
522NF.16O9.930.TB
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TB 3000K
1690
51.7
Textured Black
3000K
ON/OFF
CRI>90
7092
522DA.16O9.940.TB
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TB 4000K
1690
51.7
Textured Black
4000K
DALI / Switch Dim
CRI>90
7507
522NF.16O9.940.TB
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TB 4000K
1690
51.7
Textured Black
4000K
ON/OFF
CRI>90
7507
522DA.16O9.930.TW
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TW 3000K
1690
51.7
Textured White
3000K
DALI / Switch Dim
CRI>90
7092
522NF.16O9.930.TW
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TW 3000K
1690
51.7
Textured White
3000K
ON/OFF
CRI>90
7092
522DA.16O9.940.TW
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 DALI Push dim 5Y 1690mm TW 4000K
1690
51.7
Textured White
4000K
DALI / Switch Dim
CRI>90
7507
522NF.16O9.940.TW
ORIS NEO Linear System opal D/I light suspended 51,7W CRI>90 90º IP40 ON/OFF 5Y 1690mm TW 4000K
1690
51.7
Textured White
4000K
ON/OFF
CRI>90
7507
522TU.16O9.92765.AL
ORIS NEO Linear System opal D/I light suspended 71,4W CRI>90 90º IP40 Tunable White 5Y 1690mm AL 2700K -> 6500K
1690
71.4
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
6567
522TU.16O9.92765.TB
ORIS NEO Linear System opal D/I light suspended 71,4W CRI>90 90º IP40 Tunable White 5Y 1690mm TB 2700K -> 6500K
1690
71.4
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
6567
522TU.16O9.92765.TW
ORIS NEO Linear System opal D/I light suspended 71,4W CRI>90 90º IP40 Tunable White 5Y 1690mm TW 2700K -> 6500K
1690
71.4
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
6567
522DA.19O9.930.AL
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 DALI Push dim 5Y 1970mm AL 3000K
1970
60.7
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
8327
522NF.19O9.930.AL
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 ON/OFF 5Y 1970mm AL 3000K
1970
60.7
Anodized aluminium
3000K
ON/OFF
CRI>90
8327
522DA.19O9.940.AL
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 DALI Push dim 5Y 1970mm AL 4000K
1970
60.7
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
8814
522NF.19O9.940.AL
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 ON/OFF 5Y 1970mm AL 4000K
1970
60.7
Anodized aluminium
4000K
ON/OFF
CRI>90
8814
522DA.19O9.930.TB
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TB 3000K
1970
60.7
Textured Black
3000K
DALI / Switch Dim
CRI>90
8327
522NF.19O9.930.TB
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 ON/OFF 5Y 1970mm TB 3000K
1970
60.7
Textured Black
3000K
ON/OFF
CRI>90
8327
522DA.19O9.940.TB
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TB 4000K
1970
60.7
Textured Black
4000K
DALI / Switch Dim
CRI>90
8814
522NF.19O9.940.TB
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 ON/OFF 5Y 1970mm TB 4000K
1970
60.7
Textured Black
4000K
ON/OFF
CRI>90
8814
522DA.19O9.930.TW
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TW 3000K
1970
60.7
Textured White
3000K
DALI / Switch Dim
CRI>90
8327
522NF.19O9.930.TW
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 ON/OFF 5Y 1970mm TW 3000K
1970
60.7
Textured White
3000K
ON/OFF
CRI>90
8327
522DA.19O9.940.TW
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 DALI Push dim 5Y 1970mm TW 4000K
1970
60.7
Textured White
4000K
DALI / Switch Dim
CRI>90
8814
522NF.19O9.940.TW
ORIS NEO Linear System opal D/I light suspended 60,7W CRI>90 90º IP40 ON/OFF 5Y 1970mm TW 4000K
1970
60.7
Textured White
4000K
ON/OFF
CRI>90
8814
522TU.19O9.92765.AL
ORIS NEO Linear System opal D/I light suspended 84W CRI>90 90º IP40 Tunable White 5Y 1970mm AL 2700K -> 6500K
1970
84
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
7726
522TU.19O9.92765.TB
ORIS NEO Linear System opal D/I light suspended 84W CRI>90 90º IP40 Tunable White 5Y 1970mm TB 2700K -> 6500K
1970
84
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
7726
522TU.19O9.92765.TW
ORIS NEO Linear System opal D/I light suspended 84W CRI>90 90º IP40 Tunable White 5Y 1970mm TW 2700K -> 6500K
1970
84
Textured White
2700K - 6500K
Tunable White
Tunable White CRI>90
7726
522DA.22O9.930.AL
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 DALI Push dim 5Y 2250mm AL 3000K
2250
67.4
Anodized aluminium
3000K
DALI / Switch Dim
CRI>90
9243
522NF.22O9.930.AL
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 ON/OFF 5Y 2250mm AL 3000K
2250
67.4
Anodized aluminium
3000K
ON/OFF
CRI>90
9243
522DA.22O9.940.AL
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 DALI Push dim 5Y 2250mm AL 4000K
2250
67.4
Anodized aluminium
4000K
DALI / Switch Dim
CRI>90
9784
522NF.22O9.940.AL
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 ON/OFF 5Y 2250mm AL 4000K
2250
67.4
Anodized aluminium
4000K
ON/OFF
CRI>90
9784
522DA.22O9.930.TB
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TB 3000K
2250
67.4
Textured Black
3000K
DALI / Switch Dim
CRI>90
9243
522NF.22O9.930.TB
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 ON/OFF 5Y 2250mm TB 3000K
2250
67.4
Textured Black
3000K
ON/OFF
CRI>90
9243
522DA.22O9.940.TB
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TB 4000K
2250
67.4
Textured Black
4000K
DALI / Switch Dim
CRI>90
9784
522NF.22O9.940.TB
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 ON/OFF 5Y 2250mm TB 4000K
2250
67.4
Textured Black
4000K
ON/OFF
CRI>90
9784
522DA.22O9.930.TW
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TW 3000K
2250
67.4
Textured White
3000K
DALI / Switch Dim
CRI>90
9243
522NF.22O9.930.TW
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 ON/OFF 5Y 2250mm TW 3000K
2250
67.4
Textured White
3000K
ON/OFF
CRI>90
9243
522DA.22O9.940.TW
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 DALI Push dim 5Y 2250mm TW 4000K
2250
67.4
Textured White
4000K
DALI / Switch Dim
CRI>90
9784
522NF.22O9.940.TW
ORIS NEO Linear System opal D/I light suspended 67,4W CRI>90 90º IP40 ON/OFF 5Y 2250mm TW 4000K
2250
67.4
Textured White
4000K
ON/OFF
CRI>90
9784
522TU.22O9.92765.AL
ORIS NEO Linear System opal D/I light suspended 92,4W CRI>90 90º IP40 Tunable White 5Y 2250mm AL 2700K -> 6500K
2250
92.4
Anodized aluminium
2700K - 6500K
Tunable White
Tunable White CRI>90
8499
522TU.22O9.92765.TB
ORIS NEO Linear System opal D/I light suspended 92,4W CRI>90 90º IP40 Tunable White 5Y 2250mm TB 2700K -> 6500K
2250
92.4
Textured Black
2700K - 6500K
Tunable White
Tunable White CRI>90
8499
522TU.22O9.92765.TW
ORIS NEO Linear System opal D/I light suspended 92,4W CRI>90 90º IP40 Tunable White 5Y 2250mm TW 2700K -> 6500K
